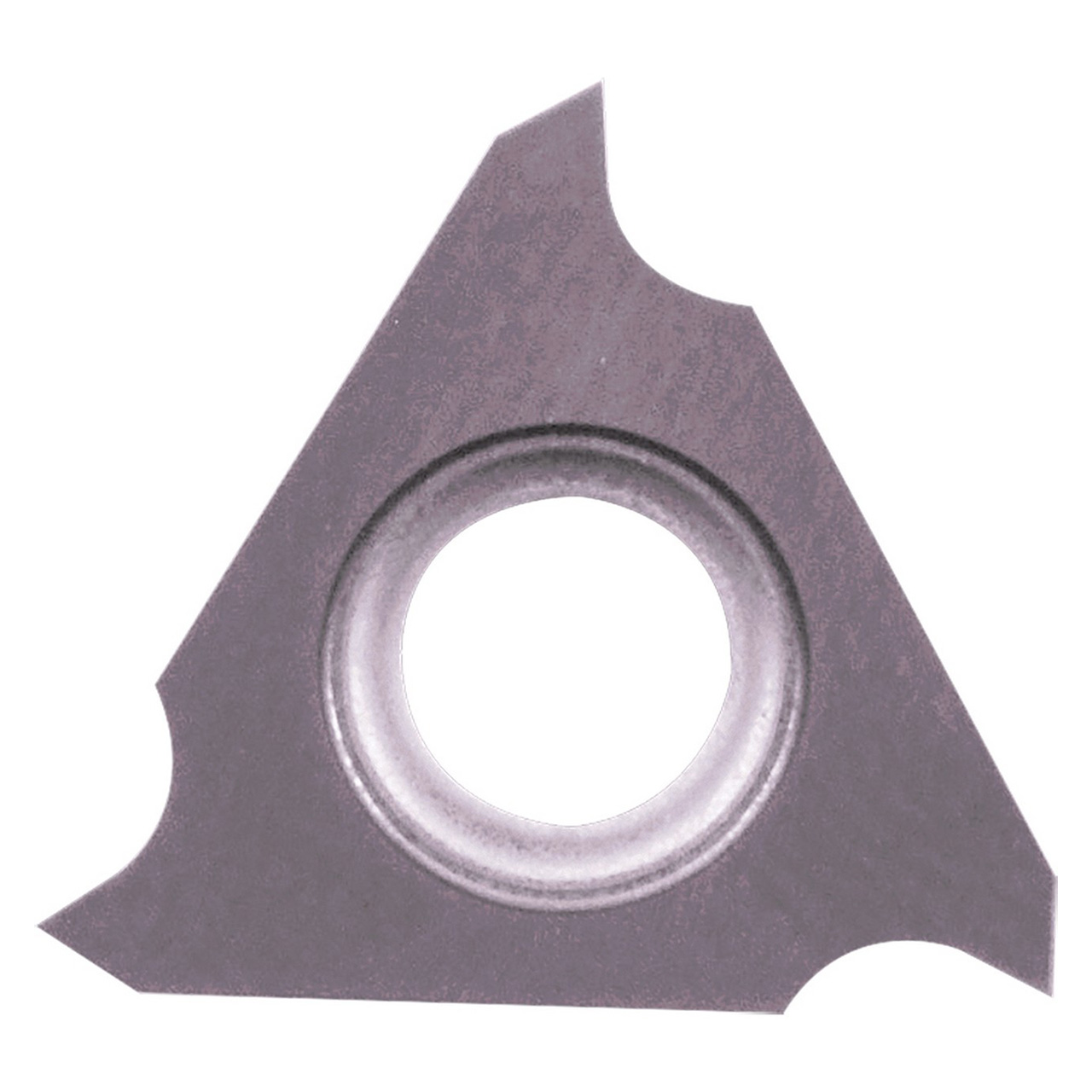

Kyocera Precision Tools TKH18797 | GBF32R145010 PR1215 0.0571" Cutting Width x 1/8" Thickness PVD Coated Carbide Grooving Insert

$21.39
Brand:
Kyocera Precision Tools
Insert Style:
GBF
Insert Size:
32
Material:
Carbide;Cutting Width (Decimal Inch)=0.0571"""
Cutting Width (mm):
1.45mm
Maximum Depth of Cut (Decimal Inch):
0.1063"
Maximum Depth of Cut (mm):
2.70mm
Manufacturer's Grade:
PR1215
Finish/Coating:
PVD
SKU:
23238983
Weight:
0.11 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting

Product Specifications
Tool NumberTKH18797
Max Depth of Cut (Decimal Inch)0.1063"
Max Depth of Cut (mm)2.70mm
Cutting Width (Decimal Inch)0.0571"
Cutting Width (mm)1.45mm
Cutting Width Minimum (Decimal Inch)0.0571"
Cutting Width Minimum (mm)1.45mm
Cutting Width Maximum (Decimal Inch)0.0571"
Cutting Width Maximum (mm)1.45mm
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)0.004"
Corner Radius (mm)0.10mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Grooving
Coating ProcessPVD
Cutting RangeMedium
HandRight Hand
Insert Holding MethodScrew
Insert GradePR1215
Insert Size32
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
