Features:

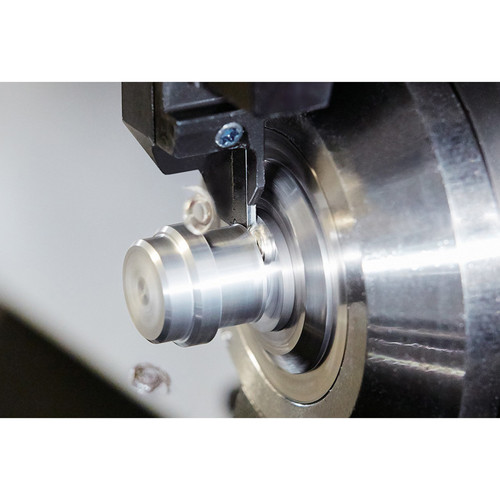

- Insert for Cut-Off for Small parts machining
- 15 Degree lead angle / Low feed / 2-edge
- 2 Cutting edges
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for titanium alloy and precipitation hardened stainless steel
Product Specifications
Tool Number | TLC10868 |
Cutting Width (Decimal Inch) | 0.0984" |
Cutting Width (mm) | 2.50mm |
Cutting Width Minimum (Decimal Inch) | 0.0984" |
Cutting Width Minimum (mm) | 2.50mm |
Cutting Width Maximum (Decimal Inch) | 0.0984" |
Cutting Width Maximum (mm) | 2.50mm |
Insert Length (Decimal Inch) | 0.7874" |
Insert Length (mm) | 20.00mm |
Corner Radius (Inch) | 0.001" |
Corner Radius (mm) | 0.03mm |
Thickness (Inch) | 0.169" |
Thickness (mm) | 4.30mm |
Application | Cut-Off | Small Parts Machining |
Chipbreaker | PF |
Coating Process | PVD |
Cutting Range | Medium Roughing |
Hand | Left Hand |
Insert Holding Method | Clamp |
Insert Grade | PR1535 |
Insert Size | 2520 |
Material | Carbide |
Number of Cutting Edges | 2 |
Primary Workpiece Material | Stainless Steel (M) |
Usage Classification | Light Interruption |
![](https://cdn11.bigcommerce.com/s-mzpq4daxph/product_images/uploaded_images/warning-icon-new.png)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=GDM"
Insert Size:
2520
Lead Angle Direction:
Left-Hand
Cutting Width (Decimal Inch):
0.0984"
Cutting Width (mm):
2.50mm
Manufacturer's Grade:
PR1535
Series:
KGD
