Features:

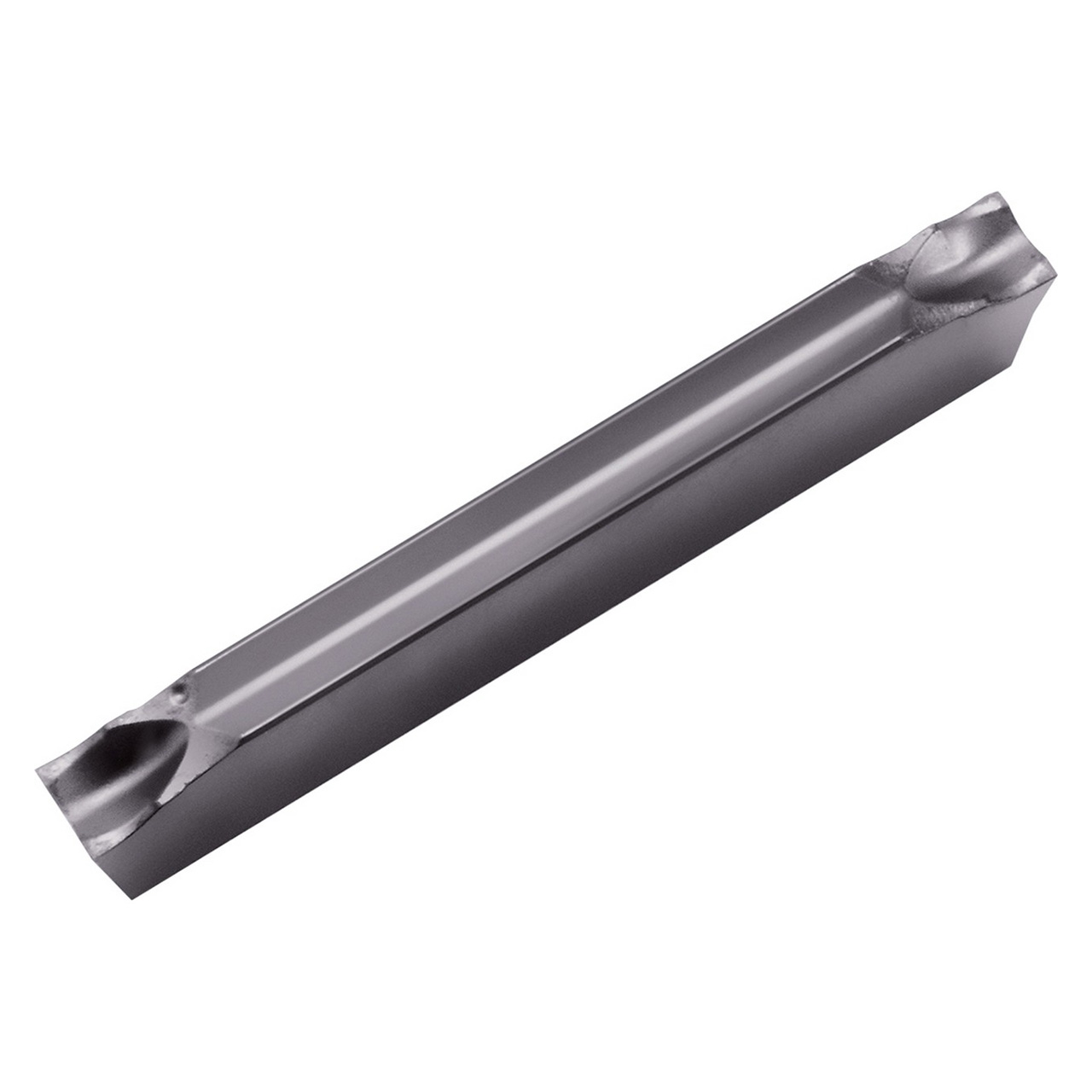

| Tool Number | TLC10866 |
| Cutting Width (Decimal Inch) | 0.0984" |
| Cutting Width (mm) | 2.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0984" |
| Cutting Width Minimum (mm) | 2.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0984" |
| Cutting Width Maximum (mm) | 2.50mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.001" |
| Corner Radius (mm) | 0.03mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |

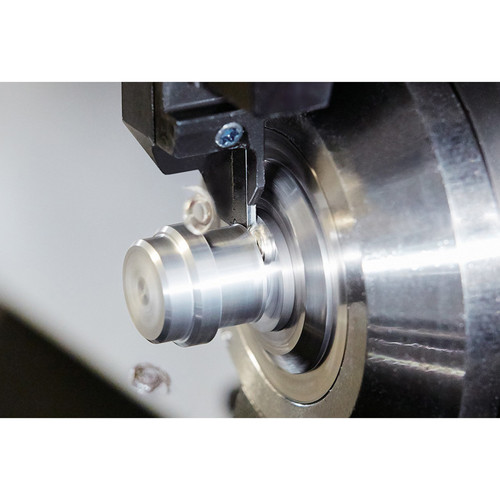

| Application | Cut-Off | Small Parts Machining |
| Chipbreaker | PF |
| Coating Process | PVD |
| Cutting Range | Medium Roughing |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | PR1535 |
| Insert Size | 2520 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel (M) |
| Usage Classification | Light Interruption |
