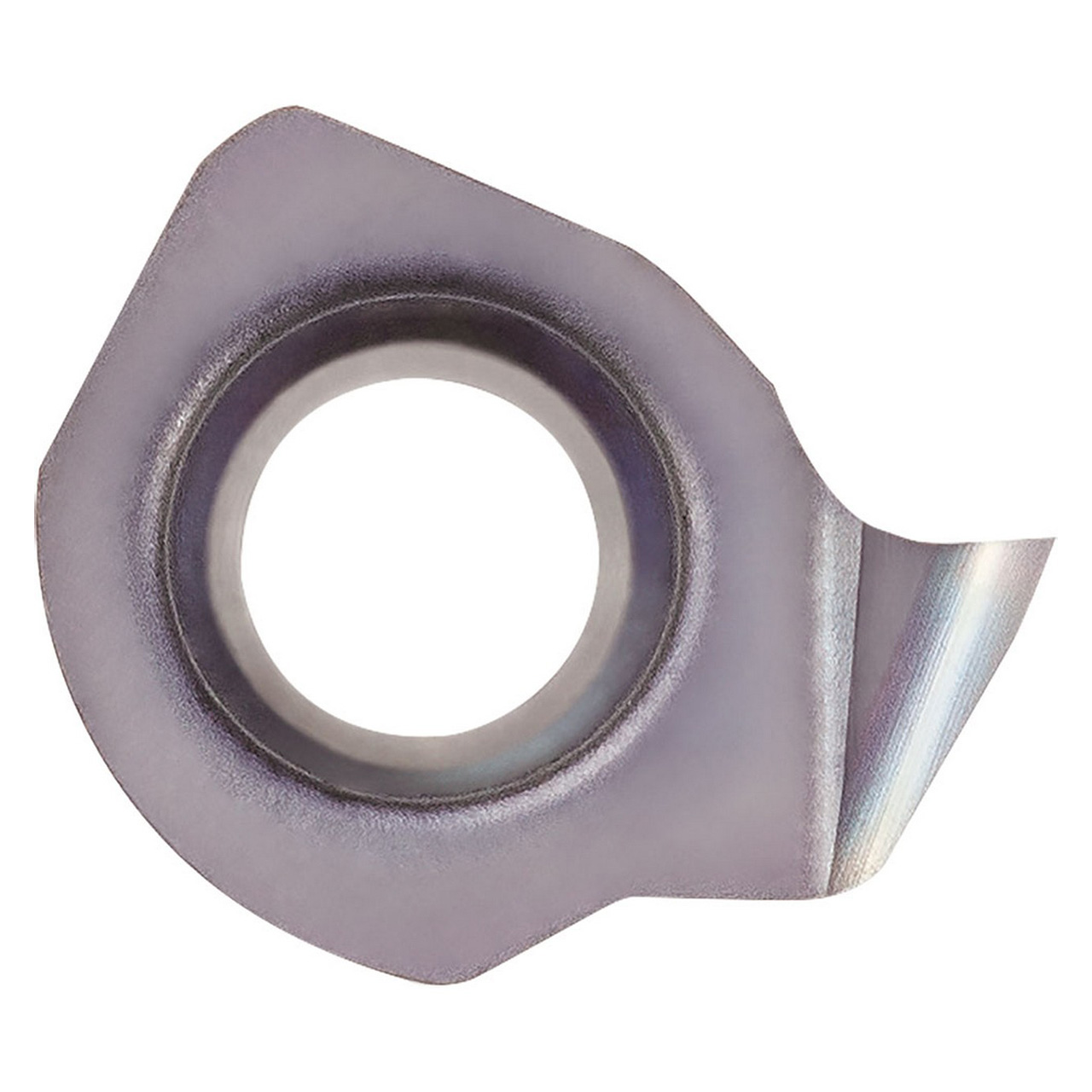

Kyocera Precision Tools TLC40121 | GC12R200100R PR1535 0.0787" Cutting width x 0.4567" Insert Length PVD Coated Carbide Grooving Insert

$46.54 $26.99
(You save $19.55)
Brand:
Kyocera Precision Tools
Insert Style:
GC
Insert Size:
12
Material:
Carbide;Cutting Width (Decimal Inch)=0.0787"
Cutting Width (mm):
2.00mm
Maximum Depth of Cut (Decimal Inch):
0.0866"
Maximum Depth of Cut (mm):
2.20mm
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD
interval quantity:
5
SKU:
23242632
UPC:
Weight:
0.07 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout

Related Products

Features:

  • Insert for small internal grooving
  • 1 Cutting edge
  • Stabilized grooving operations and long tool life with MEGACOAT NANO coating technology

Product Specifications
Tool NumberTLC40121
Max Depth of Cut (Decimal Inch)0.0866"
Max Depth of Cut (mm)2.20mm
Cutting Width (Decimal Inch)0.0787"
Cutting Width (mm)2.00mm
Cutting Width Minimum (Decimal Inch)0.0787"
Cutting Width Minimum (mm)2.00mm
Cutting Width Maximum (Decimal Inch)0.0787"
Cutting Width Maximum (mm)2.00mm
Insert Length (Decimal Inch)0.4567"
Insert Length (mm)11.60mm
Corner Radius (Inch)0.039"
Corner Radius (mm)1.00mm
Thickness (Inch)0.213"
Thickness (mm)5.40mm
ApplicationInternal Grooving | Small Parts Machining
ChipbreakerR
Coating ProcessPVD
Cutting RangeFinishing Medium
HandRight Hand
Insert Holding MethodScrew or Clamp
Insert GradePR1535
Insert Size12
MaterialCarbide
Number of Cutting Edges1
Primary Workpiece MaterialHeat-Resistant Alloy (S)
Usage ClassificationLight Interruption
