Features:

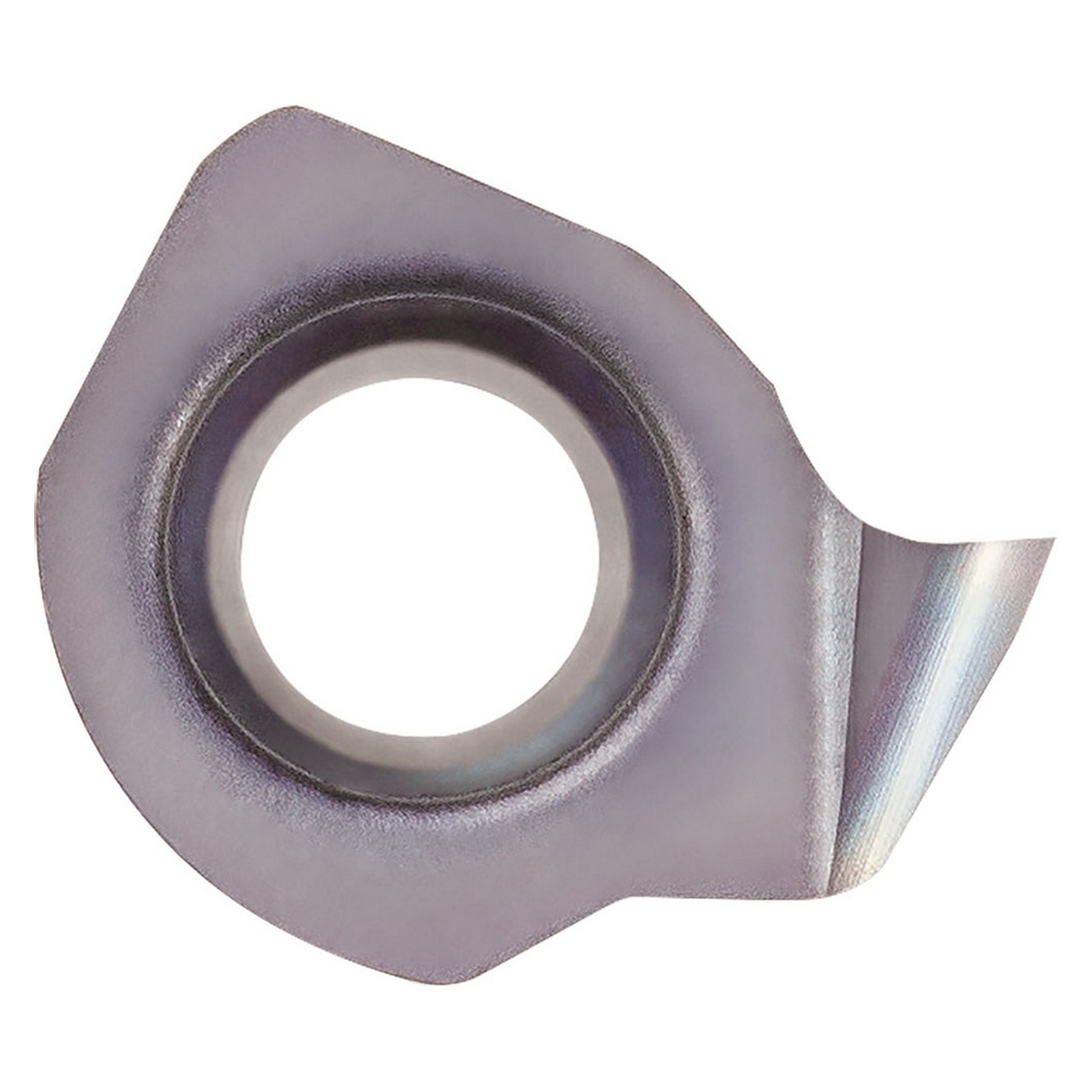

| Tool Number | TLM40280 |
| Max Depth of Cut (Decimal Inch) | 0.0866" |
| Max Depth of Cut (mm) | 2.20mm |
| Cutting Width (Decimal Inch) | 0.0787" |
| Cutting Width (mm) | 2.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0787" |
| Cutting Width Minimum (mm) | 2.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0787" |
| Cutting Width Maximum (mm) | 2.00mm |
| Insert Length (Decimal Inch) | 0.4567" |
| Insert Length (mm) | 11.60mm |
| Corner Radius (Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Thickness (Inch) | 0.213" |
| Thickness (mm) | 5.40mm |
| Application | Internal Grooving | Small Parts Machining |
| Chipbreaker | R |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Screw or Clamp |
| Insert Grade | PR1725 |
| Insert Size | 12 |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
