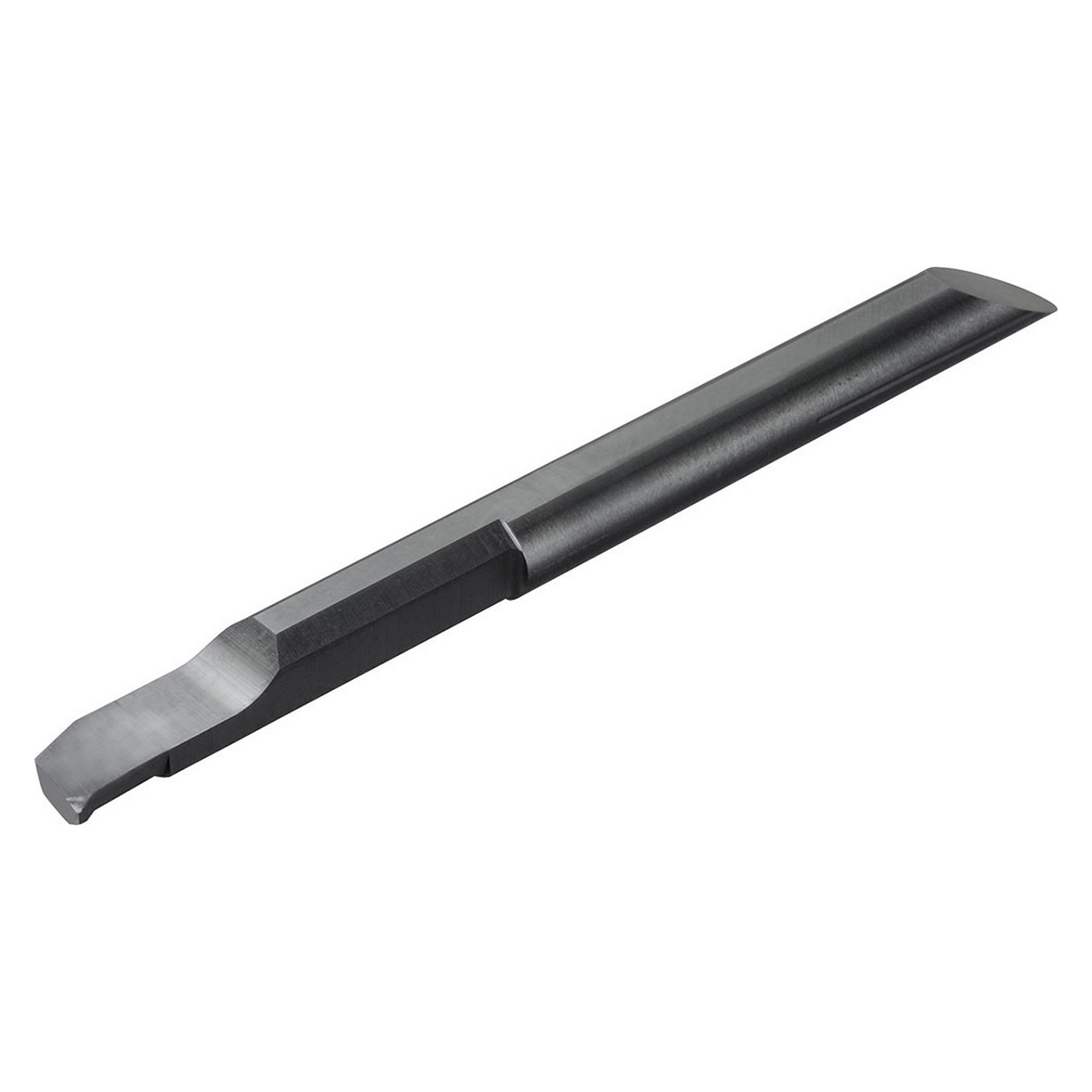

Kyocera Precision Tools TLM40345 | EZBR075070ST005F PR1725 0.2756" Diameter x 1.3780" Usable Length PVD Coated Micro Boring Bar

$63.77 $36.99
(You save $26.78)
Brand:
Kyocera Precision Tools
Series:
EZB;Minimum Bore Diameter (Decimal Inch)=0.2953"
Minimum Bore Diameter (mm):
7.50mm
Maximum Bore Depth (Decimal Inch):
1.3780"
Maximum Bore Depth (mm):
35.00mm
Shank Diameter (Decimal Inch):
0.2756"
Shank Diameter (mm):
7.00mm
interval quantity:
1
SKU:
23245796
UPC:
Weight:
0.11 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Adjustable overhang length (EZ Adjust structure)
  • Minimized deviation of the cutting diameter
  • Various EZ bar sizes and styles for a wide range of small internal machining applications
  • ST style for general machining
  • F chipbreaker for sharp edge, finishing

Product Specifications
EDP NumberTLM40345
Connection Diameter (Decimal Inch)0.2756"
Connection Diameter (mm)7.00mm
Minimum Bore Diameter (Decimal Inch)0.2953"
Minimum Bore Diameter (mm)7.50mm
Shank Height (Decimal Inch)0.2677"
Shank Height (mm)6.80mm
Tool Entering Angle ( Degree)95 Degree
Usable Length (Decimal Inch)1.3780"
Usable Length (mm)35.00mm
Corner Radius (Decimal Inch)0.002"
Corner Radius (mm)0.05mm
ApplicationMicro Boring
Coating ProcessPVD
HandRight Hand
Insert GradePR1725
Insert Holding MethodScrew
MaterialCarbide
Primary Workpiece MaterialSteel (P)

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
