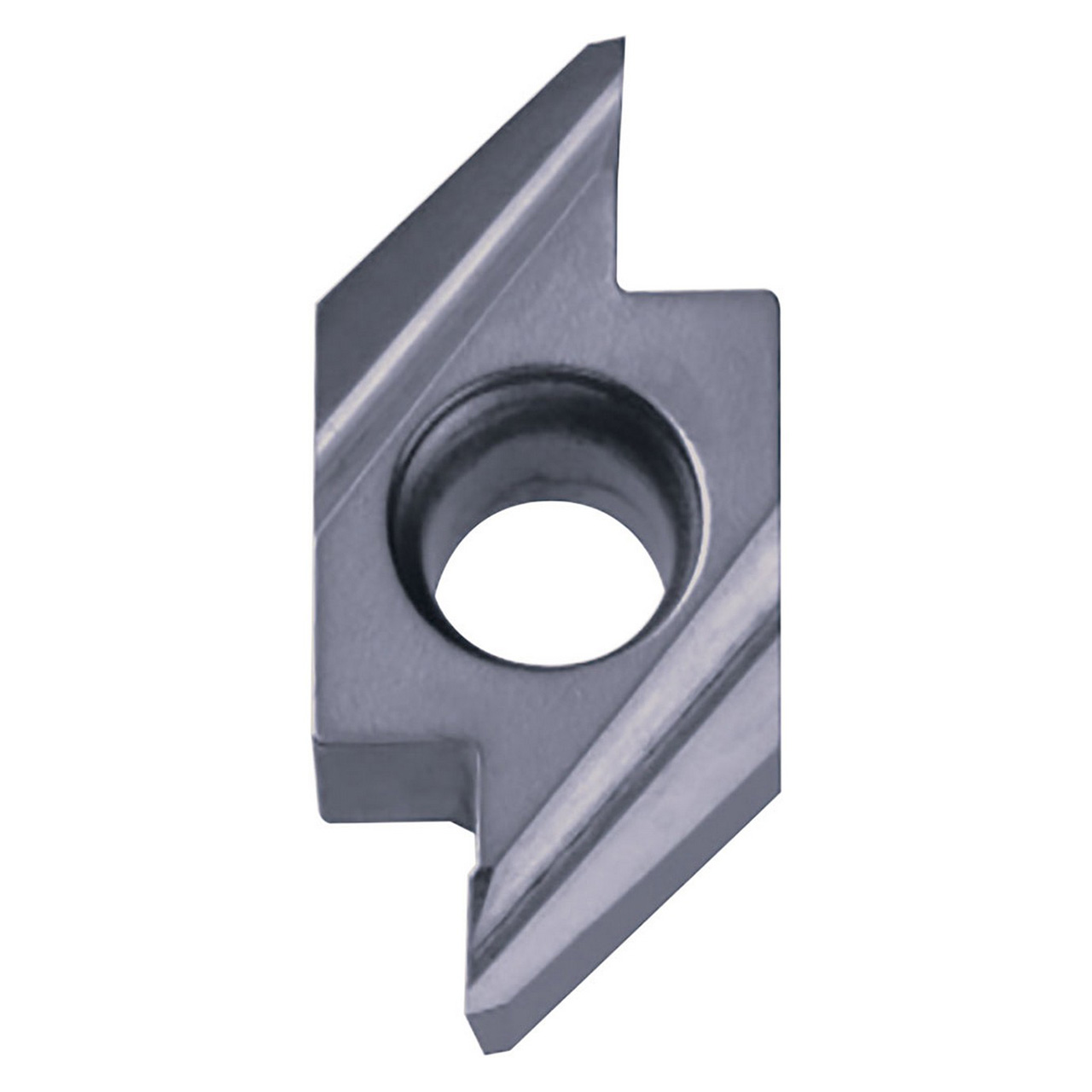

Kyocera Precision Tools TLN40003 | ABW15R4005M PR1705 0.2756 Circle Diameter x 5/32" Thickness PVD Coated Carbide Indexable Turning Insert

$53.89 $31.26
(You save $22.63)
Brand:
Kyocera Precision Tools
Insert Style:
ABW
Insert Size:
15-4005
Material:
Carbide;Thickness (Inch)=5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Decimal Inch):
0.0020"
Corner Radius (mm):
0.05mm
Manufacturer's Grade:
PR1705
interval quantity:
10
SKU:
23245829
UPC:
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Features:

  • Insert for back turning
  • Minus tolerance corner radius with 2 cutting edges
  • MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for improved tool life in continuous machining for steel, electromagnetic soft iron and high precision machining of free-cutting steel

Product Specifications
EDP NumberTLN40003
Cutting Width (Decimal Inch)0.2756"
Cutting Width (mm)7.00mm
Cutting Width Minimum (Decimal Inch)0.2756"
Cutting Width Minimum (mm)7.00mm
Cutting Width Maximum (Decimal Inch)0.2756"
Cutting Width Maximum (mm)7.00mm
Insert Length (Decimal Inch)0.6063"
Insert Length (mm)15.40mm
Corner Radius (Inch)0.002"
Corner Radius (mm)0.05mm
Thickness (Inch)5/32"
Thickness (mm)3.97mm
ApplicationBack Turning
Coating ProcessPVD
Cutting RangeFinishing
HandRight Hand
Insert GradePR1705
Insert Holding MethodScrew or Clamp
Insert ShapeIrregular
Insert Size15-4005
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialFree-Cutting Steel (P)
Usage ClassificationContinuous
