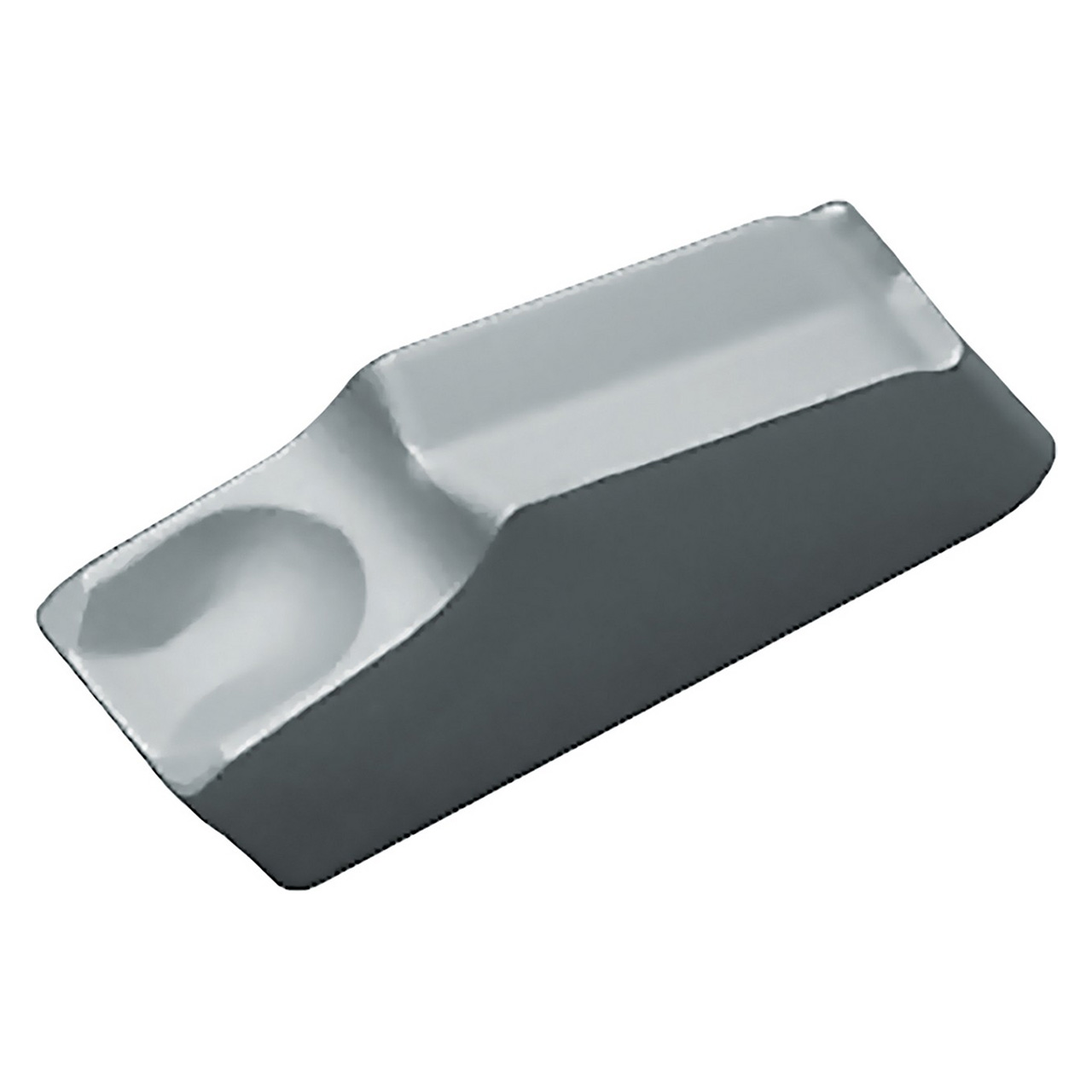

Kyocera Precision Tools TSO15100 | TKN24 TN90 0.0945" Cutting Width x 0.008" Radius Uncoated Cermet Cut-Off Insert

$10.23
Brand:
Kyocera Precision Tools
Material:
Cermet;Insert Style=TKN"
Insert Size:
24
Lead Angle Direction:
Neutral
Cutting Width (Decimal Inch):
0.0945"
Cutting Width (mm):
2.40mm
Manufacturer's Grade:
TN90
Series:
KTKC
SKU:
23250058
Weight:
0.04 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for Cut-Off
  • 1 Cutting edge
  • Cermet with great surface finish eliminates many secondary operations
  • Application: For grooving and cut-off of steel

Product Specifications
Tool NumberTSO15100
Cutting Width (Decimal Inch)0.0945"
Cutting Width (mm)2.40mm
Cutting Width Minimum (Decimal Inch)0.0945"
Cutting Width Minimum (mm)2.40mm
Cutting Width Maximum (Decimal Inch)0.0945"
Cutting Width Maximum (mm)2.40mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
ApplicationCut-Off
Coating ProcessUncoated
Cutting RangeFinishing Medium
HandNeutral
Insert Holding MethodSelf Clamp
Insert GradeTN90
Insert Size24
MaterialCermet
Number of Cutting Edges1
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Material:
Cermet;Insert Style=TKN"
Insert Size:
24
Lead Angle Direction:
Neutral
Cutting Width (Decimal Inch):
0.0945"
Cutting Width (mm):
2.40mm
Manufacturer's Grade:
TN90
Series:
KTKC
