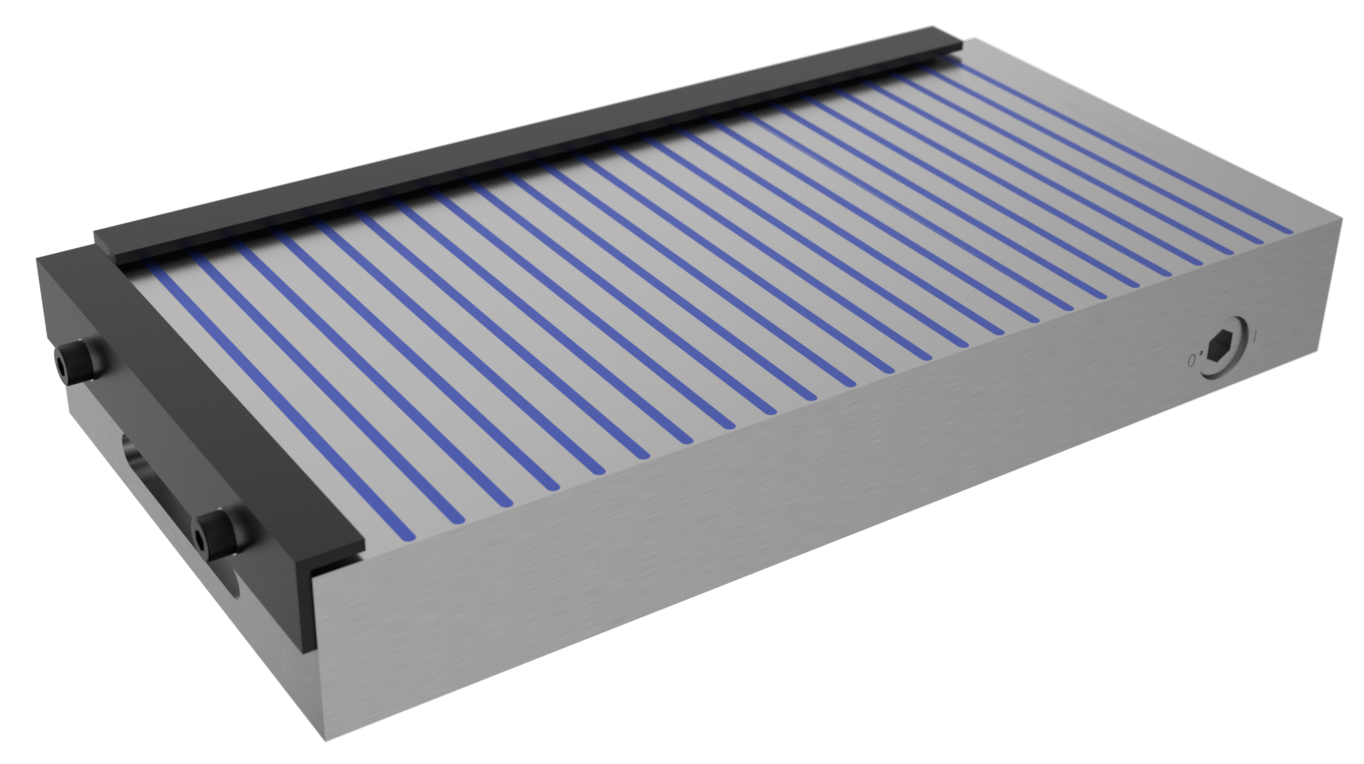

Magnetic Products CMC-250400-REN | 9-27/32" Width/Diameter x 15-3/4" Length Transverse Permanent Rectangular Magnetic Chuck

$1,871.50
Ships:
From Partner Facility
Brand:
Magnetic Products
Type:
Permanent
Shape:
Rectangular
Magnet Pole Type:
Transverse
Width/Diameter (Inch):
9-27/32"
Width/Diameter (Decimal Inch):
9.8400"
Width/Diameter (mm):
249.94mm
Length (Inch):
15-3/4"
Length (Decimal Inch):
15.7500"
Length (mm):
400.05mm
Ships:
From Partner Facility
interval quantity:
1
SKU:
50007365
UPC:
Weight:
99.21 LBS
Minimum Purchase:
1 unit
Shipping:
$350.00 (Fixed Shipping Cost)
Magnetic Products CMC-250400-REN | 9-27/32" Width/Diameter x 15-3/4" Length Transverse Permanent Rectangular Magnetic Chuck

Features

  • For milling, drilling, planing or heavy grinding
  • Holding surface with uniform distribution of the magnetic force right up to the edges
  • Water/coolant proof design Compact dimensions and a high holding force: 160 N/cm2 - 232lbs/in¦
Product Specifications
Type Permanent
Shape (Rectangular, Round, Square, etc) Rectangular
Magnet Pole Type (Fine Pole, Fine Pole & Standard Pole, etc) Transverse
Width/Diameter (Inch) 9-27/32"
Width/Diameter (Decimal Inch) 9.8400"
Width/Diameter (mm) 249.94mm
Length (Inch) 15-3/4"
Length (Decimal Inch) 15.7500"
Length (mm) 400.05mm

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
