Product Specifications

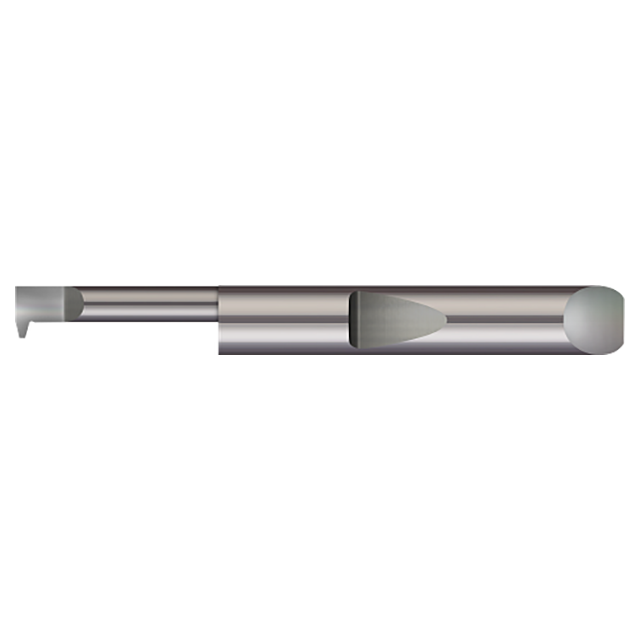

| Manufacturer Part Number | QIAT2-1250-12 |
| Minimum Bore Diameter (Decimal Inch) | 0.291" |
| Head Width (Decimal Inch) | 0.269" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.250" |
| Maximum Bore Depth (Inch) | 1-1/4" |
| Projection (Decimal Inch) | 0.085" |
| Shank Diameter (Decimal Inch) | 0.312" |
| Shank Diameter (Inch) | 5/16" |
| Centerline Offset | 0.1127" |
| Offset (Decimal Inch) | 0.049" |
| Flat Width (Decimal Inch) | 0.028" |
| Length from Holder (Decimal Inch) | 1.353" |
| Neck Diameter (Decimal Inch) | 0.184" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Thread Per Inch | 12 TPI |
| Coating | Uncoated |
| Product Type | Quick Change Threading Tool - ACME Thread |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Inch):
16/55"
Minimum Bore Diameter (Decimal Inch):
0.2910"
Minimum Bore Diameter (mm):
7.39mm
Head Width (Inch):
7/26"
Head Width (Decimal Inch):
0.2690"
Head Width (mm):
6.83mm
Maximum Bore Depth (Inch):
1-1/4"
Maximum Bore Depth (Decimal Inch):
1.2500"
Maximum Bore Depth (Inch):
31.75mm
Projection (Inch):
4/47"
Projection (Decimal Inch):
0.0850"
Projection (mm):
2.16mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3120"
Shank Diameter (mm):
7.92mm
Finish/Coating:
Uncoated
interval quantity:
1
