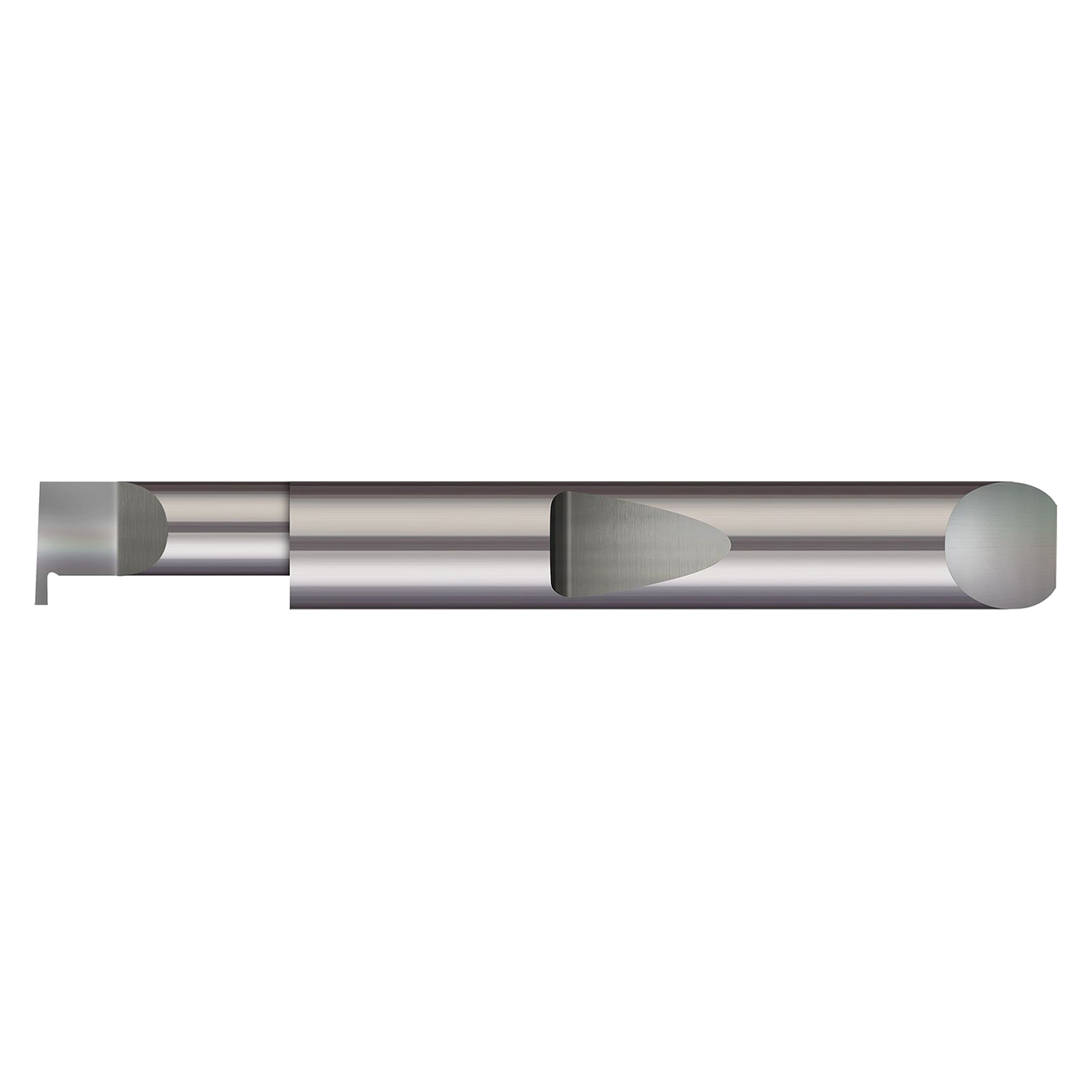

Micro 100 QRR-2795X | 0.750" Maximum Bore Depth x 0.2500" Shank x 2.000" OAL x 0.0620" Width Right hand AlTiN Grooving Tool

$49.20
Brand:
Micro 100
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Projection (Inch):
3/32"
Projection (Decimal Inch):
0.0900"
Projection (mm):
2.29mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Finish/Coating:
AlTiN
SKU:
25294732
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Micro 100 QRR-2795X | 0.750" Maximum Bore Depth x 0.2500" Shank x 2.000" OAL x 0.0620" Width Right hand AlTiN Grooving Tool

Product Specifications
Manufacturer Part NumberQRR-2795X
Minimum Bore Diameter (Decimal Inch)0.2670"
Maximum Bore Diameter (Decimal Inch)0.750"
Maximum Bore Diameter (Inch)3/4"
Projection (Decimal Inch)0.0900"
Shank Diameter (Decimal Inch)0.2500"
Projection (Decimal Inch)1/4"
Shank Diameter(mm)0.1200"
Hand DirectionRight Hand
Length from Holder (Decimal Inch)0.853"
Neck Diameter (Decimal Inch)0.1550"
Overall Length (Decimal Inch)2.00"
Overall Length (Inch)2"
Tooth Width (Decimal Inch)0.0620"
Tooth Width (Inch)0.0620"
CoatingAlTiN
Product TypeGrooving Tool
