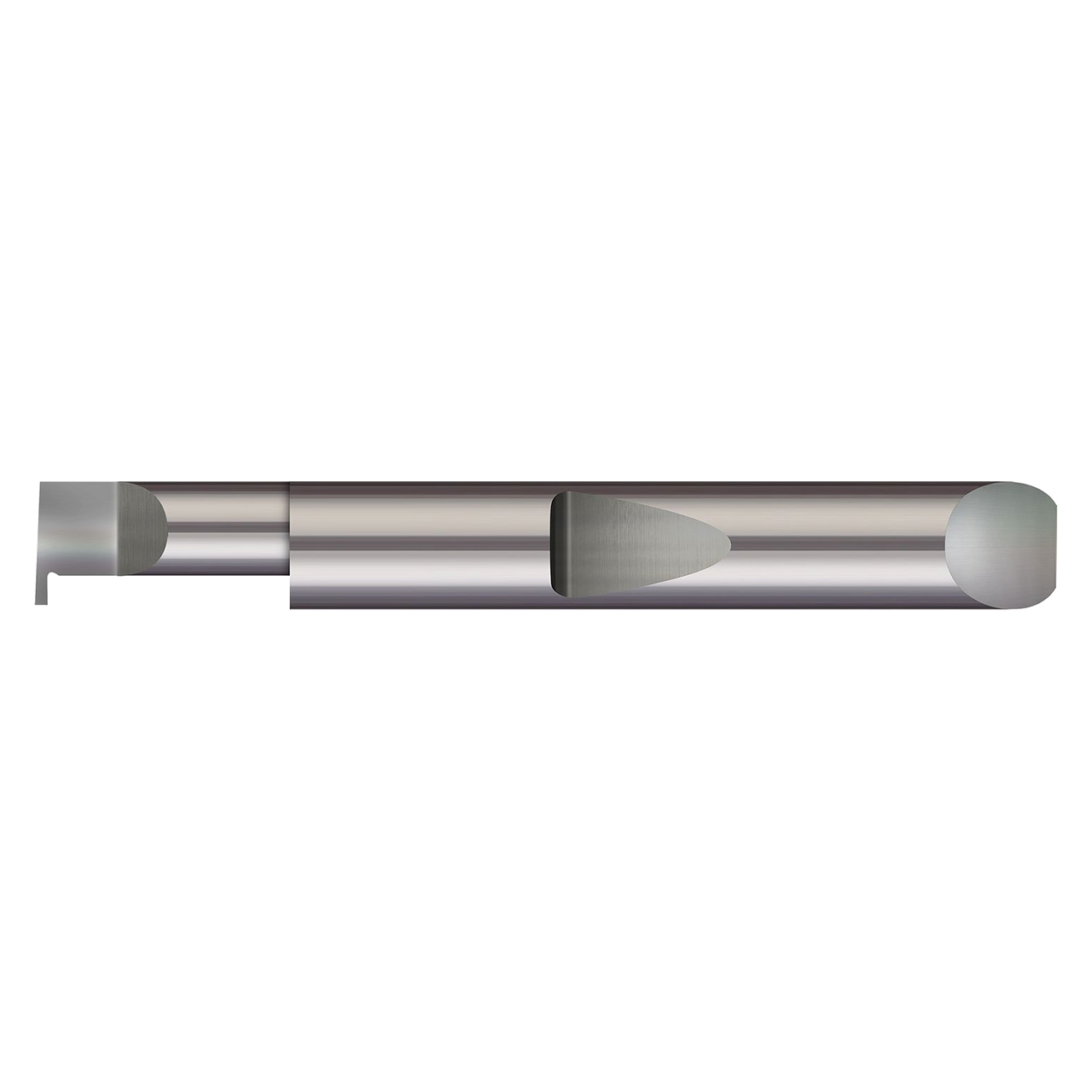

| Manufacturer Part Number | QRR-2795 |
| Minimum Bore Diameter (Decimal Inch) | 0.2670" |
| Maximum Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Bore Diameter (Inch) | 3/4" |
| Projection (Decimal Inch) | 0.0900" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Projection (Decimal Inch) | 1/4" |
| Shank Diameter(mm) | 0.1200" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 0.853" |
| Neck Diameter (Decimal Inch) | 0.1550" |
| Overall Length (Decimal Inch) | 2.00" |
| Overall Length (Inch) | 2" |
| Tooth Width (Decimal Inch) | 0.0620" |
| Tooth Width (Inch) | 0.0620" |
| Coating | Uncoated |
| Product Type | Grooving Tool |
