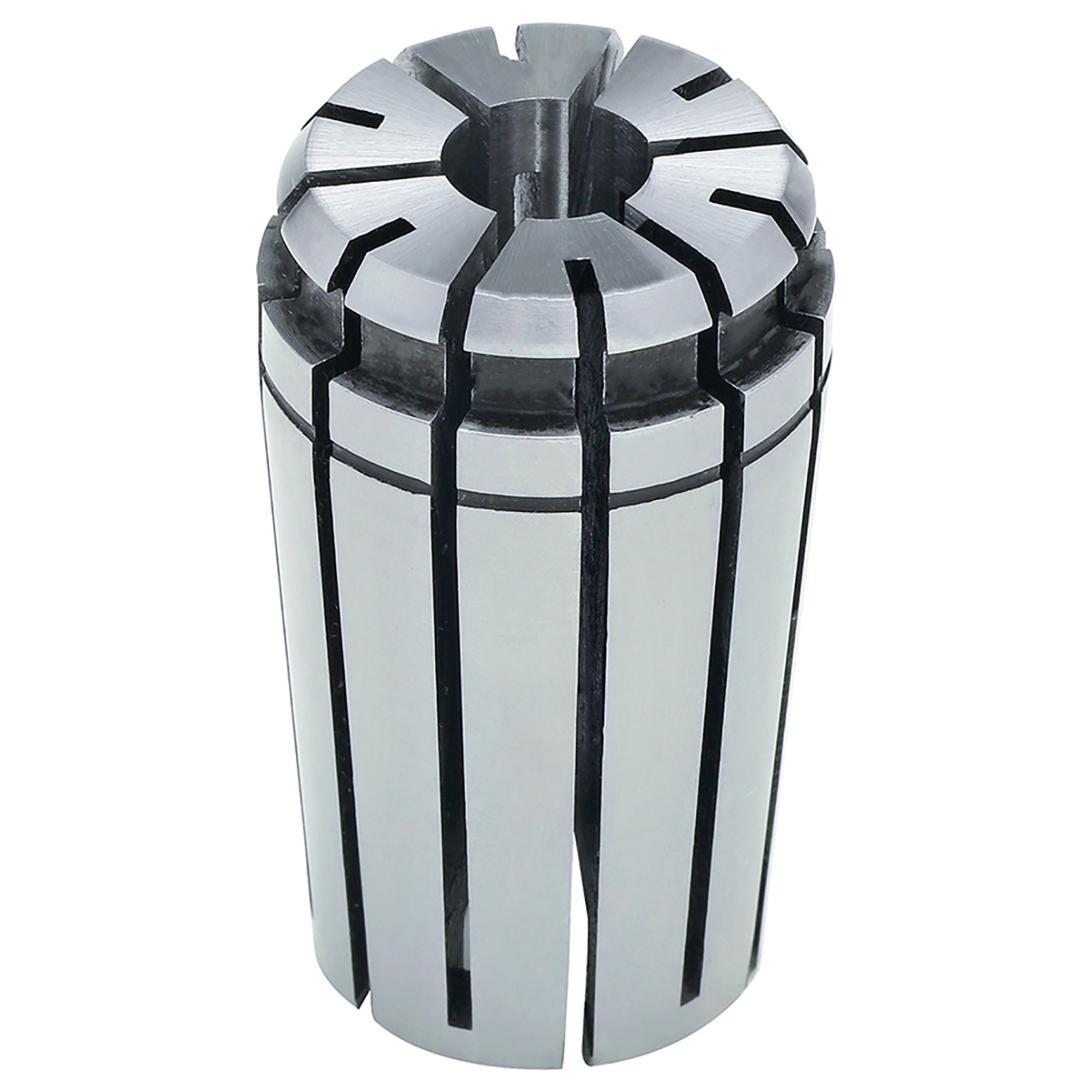

Parlec 100PG-0953 | 1.379" Diameter x 61/64" Shank x 2.375" OAL Single Angle Collet

$22.75
Brand:
Parlec
Collet Series:
PG100
Size (Inch):
61/64"
Size (mm):
24.21mm
Size (Decimal Inch):
0.95"
Overall Length (Inch):
2-3/8"
Overall Length (mm):
60.33mm
SKU:
55009588
Weight:
0.50 LBS
Shipping:
Calculated at Checkout

Features:

  • Made from high-carbon bearing steel for improved flexibility
  • 0.0004" max. T.I.R
  • Clamping range 1/64"
  • Precision ground and hand inspected

Product Specifications
Collet SeriesPG100
Overall Diameter (Inch)1.379"
Body Width (Inch)1.379"
Capacity (Inch)0.938-0.953"
Min Capacity (Inch)0.938"
Max Capacity (Inch)0.953"
Overall Length (Inch)2.375"
Shank Size (Inch)61/64"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Parlec
Collet Series:
PG100
Size (Inch):
61/64"
Size (mm):
24.21mm
Size (Decimal Inch):
0.95"
Overall Length (Inch):
2-3/8"
Overall Length (mm):
60.33mm
