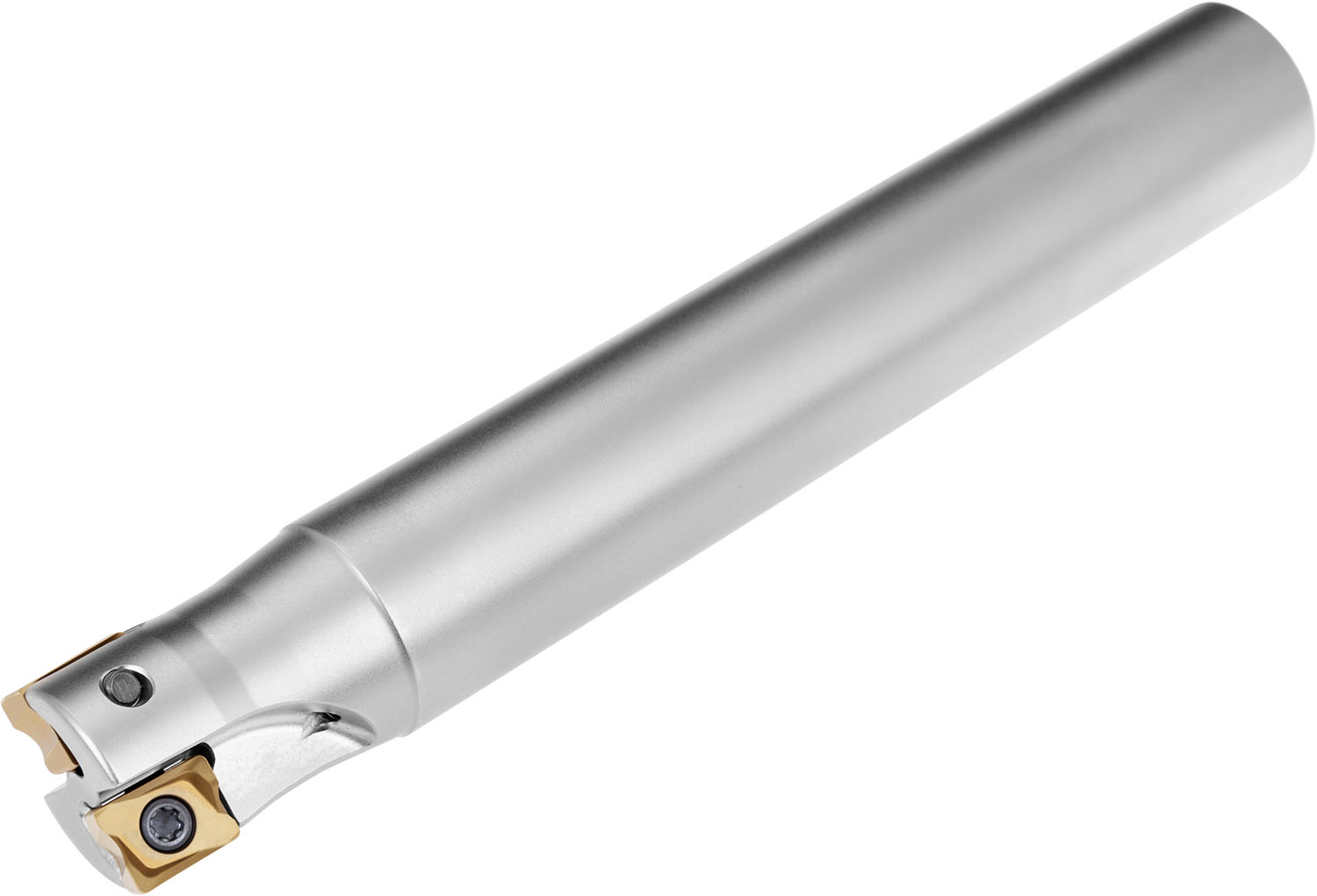

Shoulder mill with double negative geometry which utilises 2 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 1.000'' with 90° approach angle and 1.000'' parallel shank according to DIN 1835A, 3.150'' functional and 6.693'' overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .354''.
Product Specifications
| EDP Number | 6792998 |
| Peripheral Effective Cutting Edge Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -8 |
| Radial Rake Angle | -23 |
| Max Rotational Speed | 19500 |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Cutting Diameter (mm) | 25.4 mm |
| Cutting Diameter (Inch) | 1" |
| Overall Length (mm) | 83 mm |
| Overall Length (Inch) | 3.268" |
| Usable Length (Inch) | 3.15 mm |
