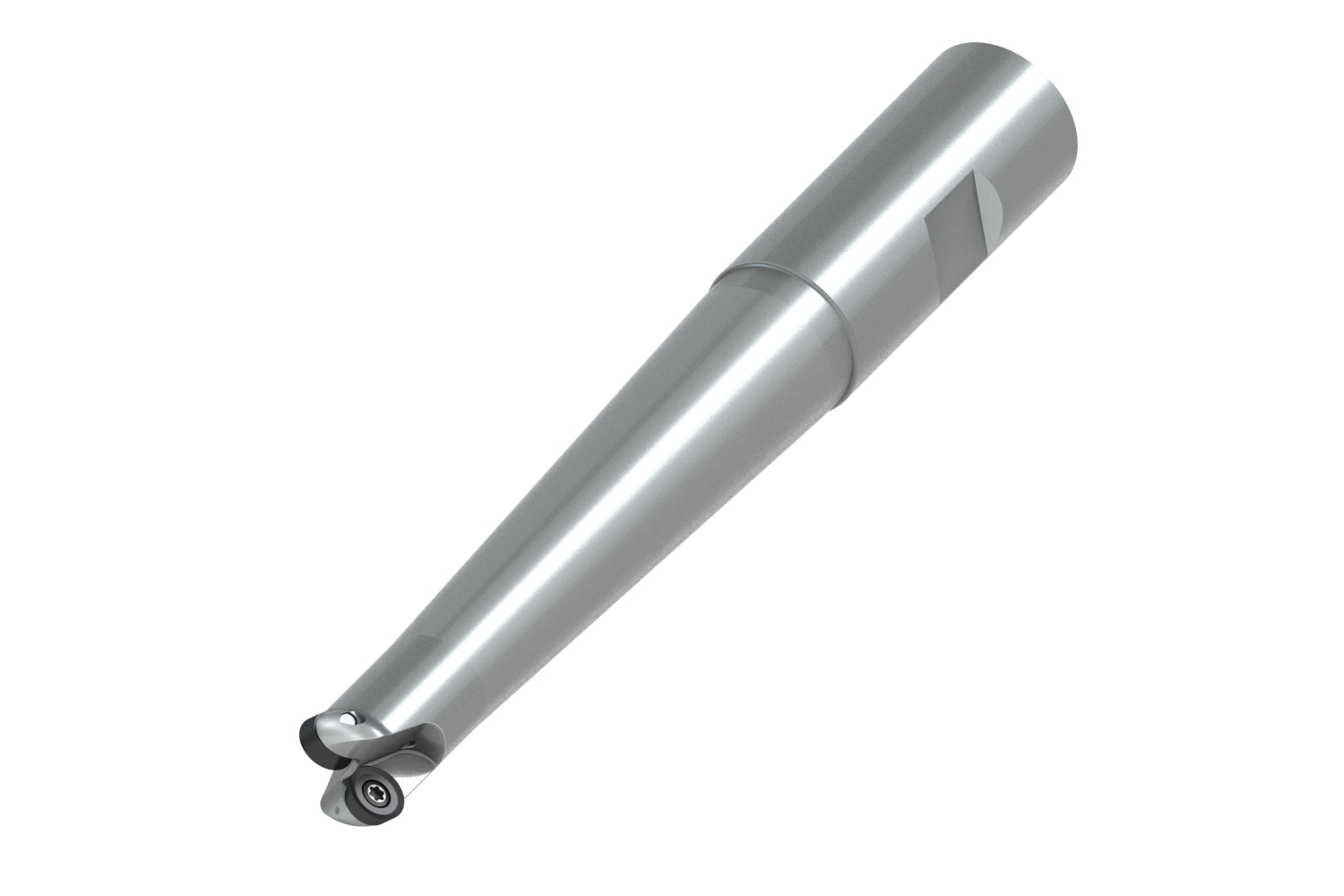

Copy face mill with positve/negative geometry which utilises 2 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 15 mm with 20 mm Weldon shank according to DIN 1835B, 100 mm usable and 150 mm overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2 mm.
Product Specifications
| EDP Number | 7999271 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Maximum Depth of Cut (mm) | 2 mm |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 1 |
| Max Rotational Speed | 44200 |
| Connection Diameter (mm) | 20 mm |
| Connection Diameter (Inch) | 0.787" |
| Cutting Diameter (mm) | 8 mm |
| Max Cutting Diameter (mm) | 15 mm |
| Cutting Diameter (Inch) | 0.315" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 100 mm |
| Max Usable Length (mm) | 22 mm |
