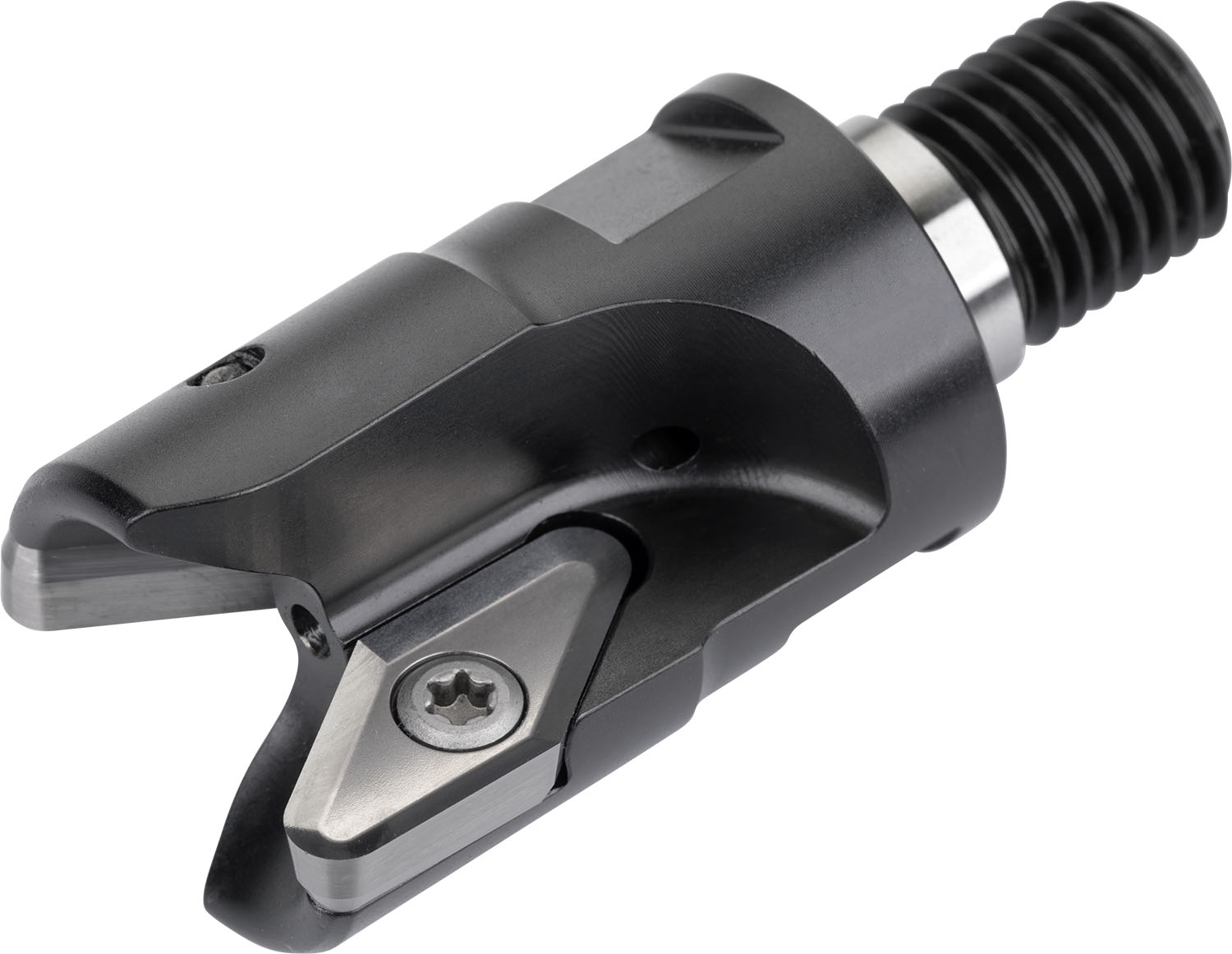

End mill with double positive geometry which utilises 3 off VCGT 220530F-FA single-sided inserts, cutting diameter 40 mm with 90 Degree approach angle and M16 threaded shank for standard modular tool-holders, 48 mm protrusion length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0) mm.
Product Specifications
| EDP Number | 6757985 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 3 |
| Radial Rake Angle | 13 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Hub Diameter (mm) | 29 mm |
| Cutting Diameter (mm) | 40 mm |
| Cutting Diameter (Inch) | 1.575" |
| Overall Length (mm) | 66 mm |
| Overall Length (Inch) | 2.598" |
| Functional Length (mm) | 48 mm |
| Thread Diameter Size | M16 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
