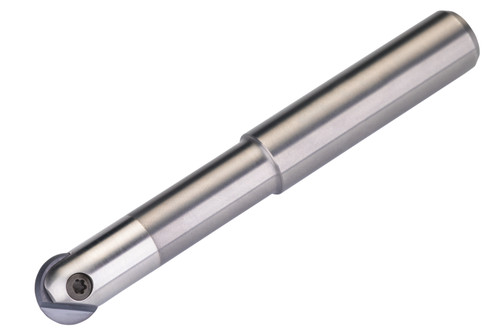

Copy end mill which utilises 1 off RC 12 or RC 12-F single-sided insert, cutting diameter 12 mm with M6 threaded shank for standard modular tool-holders, 30 mm protrusion length for copy milling with a maximum depth of cut of 0.6-3.2 mm.
Product Specifications
| EDP Number | 7051473 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 1 |
| Connection Diameter (mm) | 6.5 mm |
| Connection Diameter (Inch) | 0.256" |
| Max Cutting Diameter (mm) | 12 mm |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 30 mm |
| Thread Diameter Size | M6 |
| Country of origin | Czech Republic |
