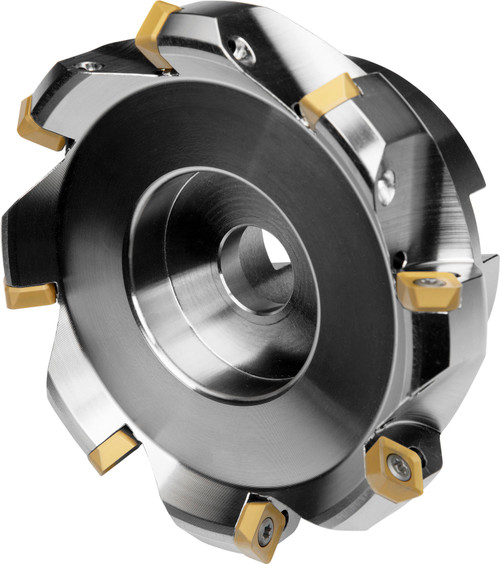

Face mill with positve/negative geometry which utilises 5 off SNKT 1205AZ.. or SNMT 1205AZ.. double-sided inserts, cutting diameter 63 to maximum 78 mm with 45° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of 6.5 mm.
Product Specifications
| EDP Number | 6758340 |
| Peripheral Effective Cutting Edge Count | 5 |
| Insert Index Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 7.5 |
| Radial Rake Angle | -5.5 |
| Max Rotational Speed | 8600 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Counterbore Diameter Connection Bore (mm) | 18 mm |
| Keyway Width (mm) | 10.4 mm |
| Keyway Depth (mm) | 6.3 mm |
| Cutting Diameter (mm) | 63 mm |
| Max Cutting Diameter (mm) | 78 mm |
| Cutting Diameter (Inch) | 2.48" |
| Functional Length (mm) | 40 mm |
