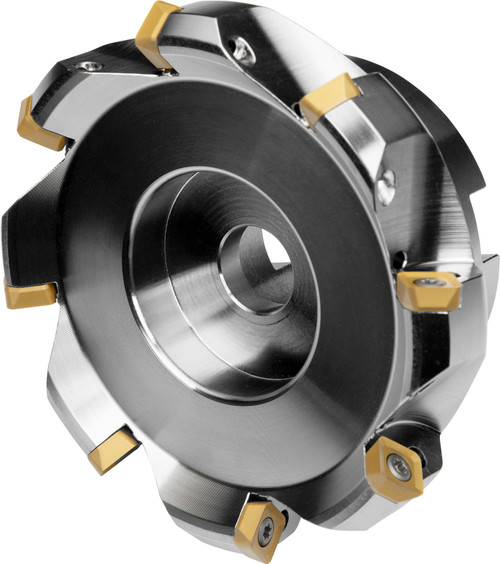

Face mill with positve/negative geometry which utilises 8 off SNKT 1205AZ.. or SNMT 1205AZ.. double-sided inserts, cutting diameter 125 to maximum 140 mm with 45 Degree approach angle and 40 mm connection bore according to DIN 8030-A, 63 mm protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of 6.5 mm.
Product Specifications
| EDP Number | 6758343 |
| Peripheral Effective Cutting Edge Count | 8 |
| Insert Index Count | 8 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 7.5 |
| Radial Rake Angle | -5.5 |
| Max Rotational Speed | 6100 |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Counterbore Diameter Connection Bore (mm) | 56 mm |
| Keyway Width (mm) | 16.4 mm |
| Keyway Depth (mm) | 9 mm |
| Cutting Diameter (mm) | 125 mm |
| Max Cutting Diameter (mm) | 140 mm |
| Cutting Diameter (Inch) | 4.921" |
| Functional Length (mm) | 63 mm |
| Country of origin | Czech Republic |
