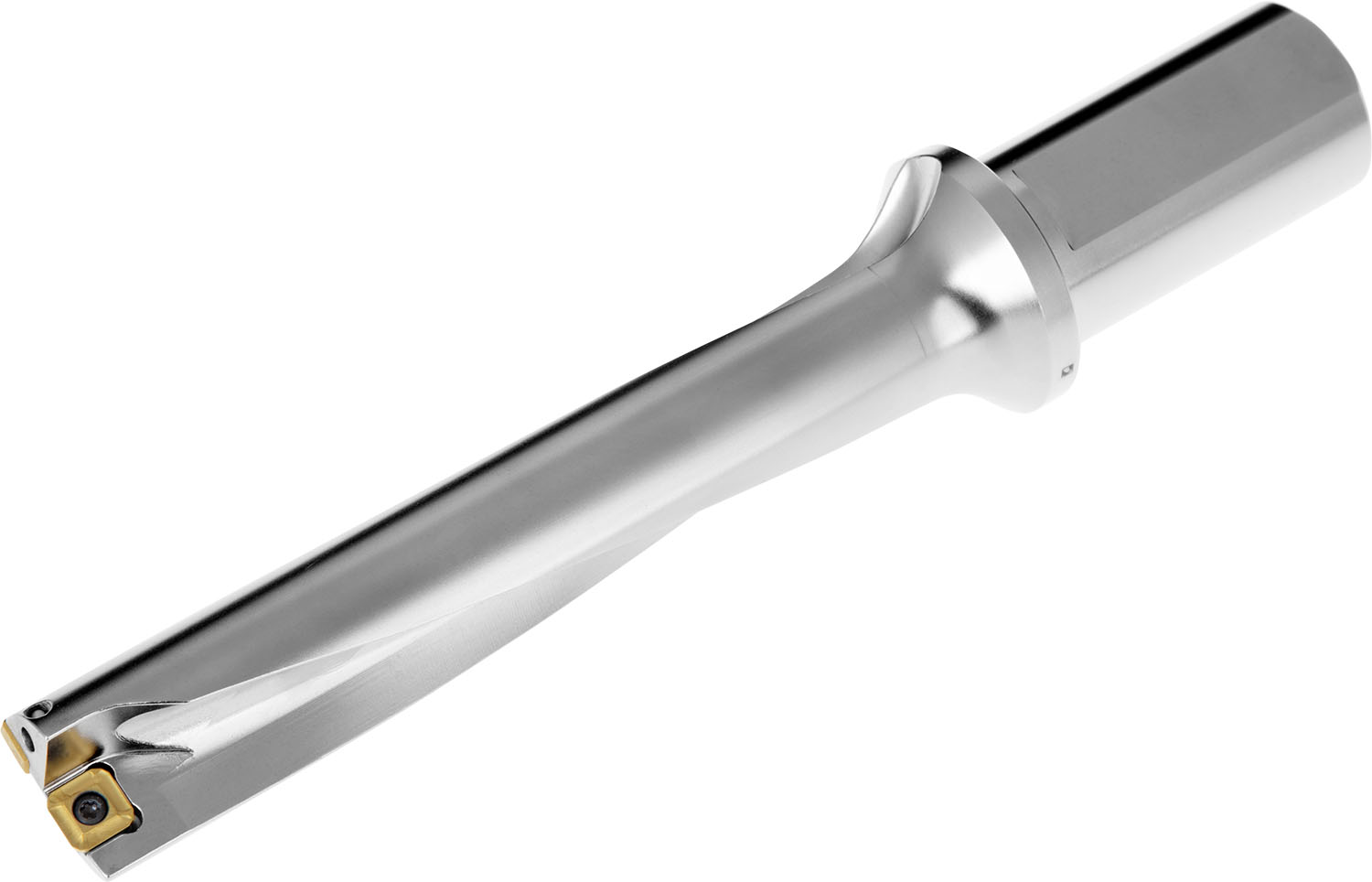

Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 29mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 5 x D.
Product Specifications
| EDP Number | 6759019 |
| Max Depth of Cut (mm) | 145 mm |
| Coolant Supply Property | 1 |
| Min Adjustment Limit (mm) | 0.2 mm |
| Max Adjustment Limit (mm) | 0.5 mm |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 29 mm |
| Cutting Diameter (Inch) | 1.142" |
| Overall Length (mm) | 230 mm |
| Overall Length (Inch) | 9.055" |
| Usable Length (mm) | 152 mm |
| Protruding Length (mm) | 170 mm |
| Shank Length (mm) | 60 mm |
| Cutting Edge Count | 1 |
