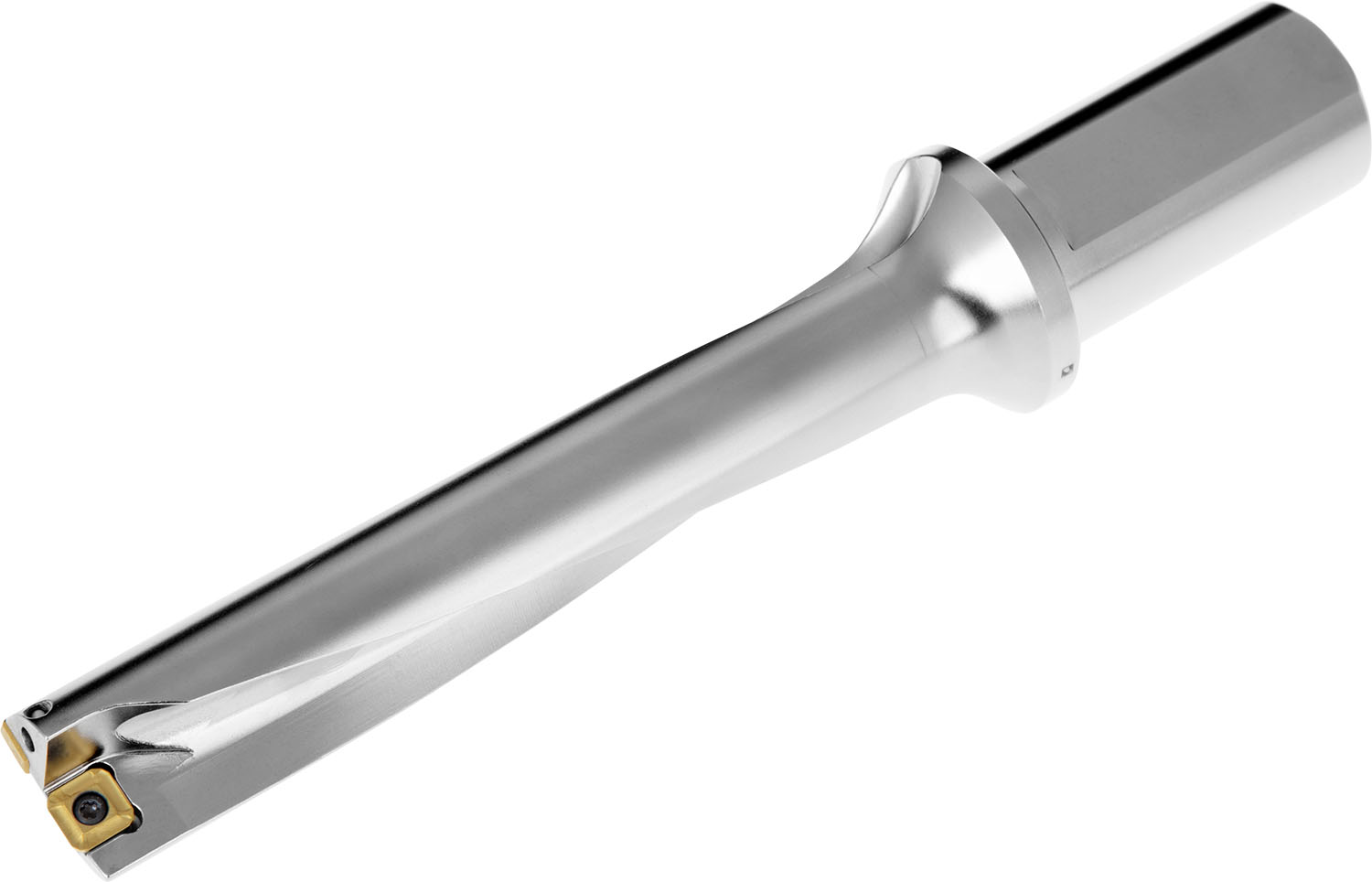

Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 31mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 5 x D.
Product Specifications
| EDP Number | 6759021 |
| Max Depth of Cut (mm) | 155 mm |
| Coolant Supply Property | 1 |
| Min Adjustment Limit (mm) | 0.15 mm |
| Max Adjustment Limit (mm) | 0.5 mm |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 31 mm |
| Cutting Diameter (Inch) | 1.22" |
| Overall Length (mm) | 240 mm |
| Overall Length (Inch) | 9.449" |
| Usable Length (mm) | 163 mm |
| Protruding Length (mm) | 180 mm |
| Shank Length (mm) | 60 mm |
| Cutting Edge Count | 1 |
| Country of origin | Czech Republic |
