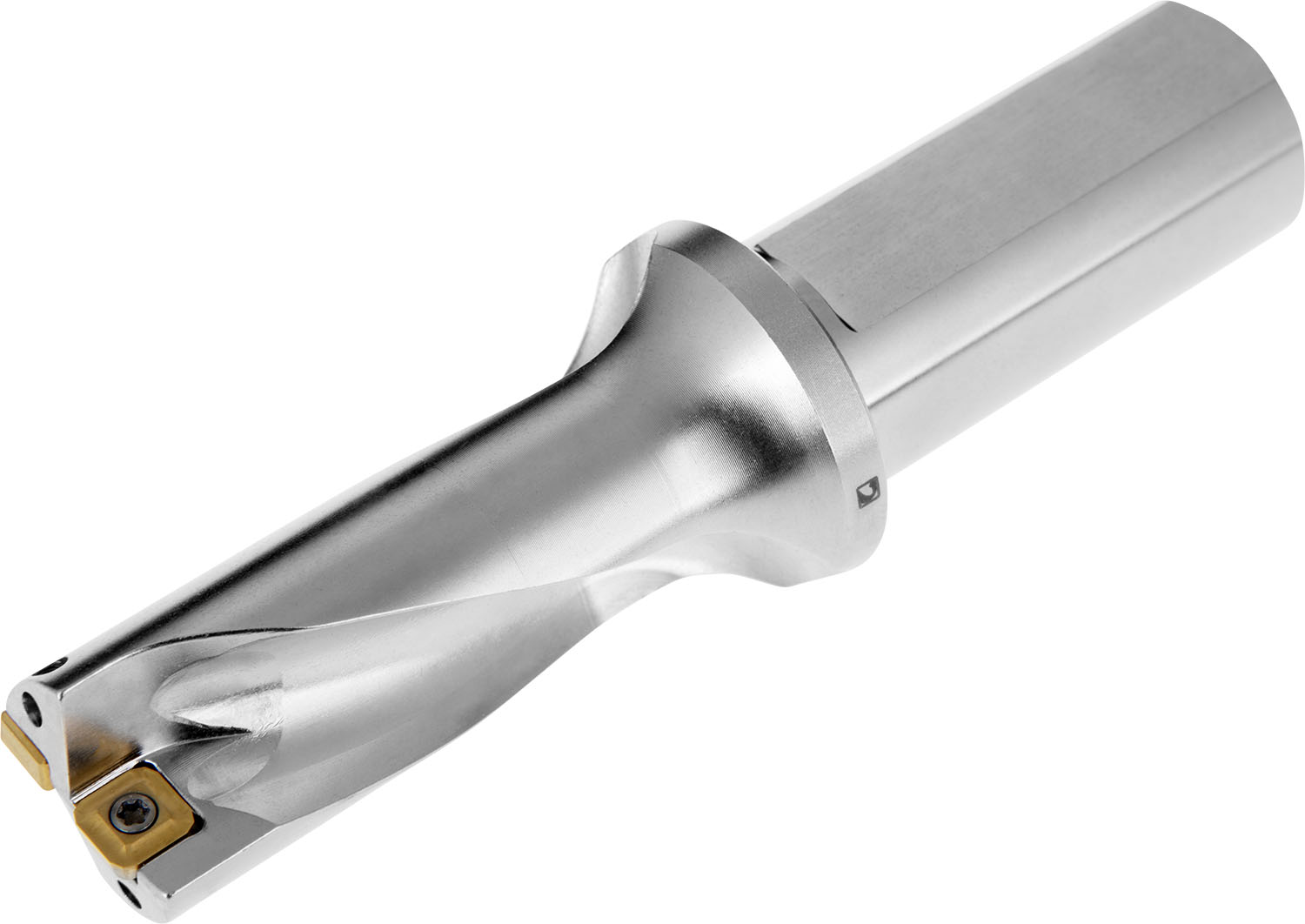

Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 1.032'', with a 1.250'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D.
Product Specifications
| EDP Number | 6801106 |
| Max Depth of cut (Inch) | 2.064" |
| Min Adjustment Limit (Inch) | 0.004" |
| 0.019" |
| Connection Diameter (mm) | 31.8 mm |
| Connection Diameter (Inch) | 1.25" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 26.2 mm |
| Cutting Diameter (Inch) | 1.032" |
| Overall Length (mm) | 137 mm |
| Overall Length (Inch) | 5.409" |
| Usable Length (Inch) | 2.283" |
| Protruding Length (Inch) | 3.047" |
| Shank Length (Inch) | 2.362" |
| Country of origin | Czech Republic |
