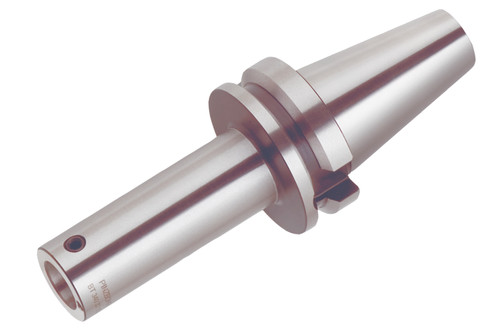

Tool shank for modular boring system sizes 100 and 200 with BT 50 taper shank according to JIS B 6339, through coolant feed and 260 protrusion length (including the boring head ).
Product Specifications
| EDP Number | 6761462 |
| Coolant Supply Property | 1 |
| Connection Diameter Workpiece Side (mm) | 60 mm |
| Connection Size Code Machine Side | 100, 200 |
| Body Diameter (mm) | 100 mm |
| Body Diameter (Inch) | 3.937" |
| Usable Length (mm) | 260 mm |
| Functional Length (mm) | 302 mm |
| Protruding Length (mm) | 202 mm |
| Country of origin | Czech Republic |
