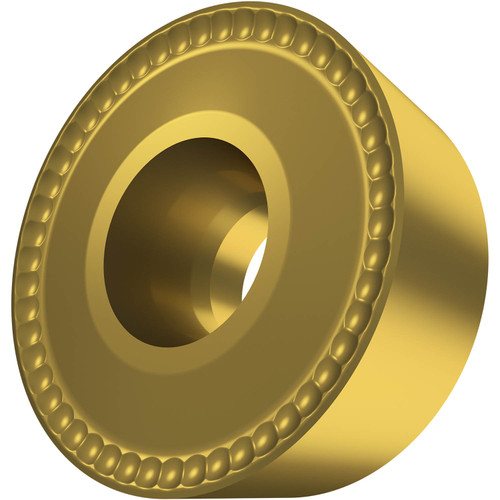

Special design positive turning insert, round with 7 Degree clearance, a diameter of 25 mm, 7.94 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 351 with rounded cutting edges with facet, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for heavy to medium machining of steels.
Product Specifications
| EDP Number | 6751664 |
| Max Depth of Cut (mm) | 7 mm |
| Max Depth of cut (Inch) | 0.276" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 7.2 mm |
| Fixing Hole Diameter (Inch) | 0.283" |
| Insert Diameter (mm) | 25 mm |
| 0.984" | |
| Insert Thickness (mm) | 7.94 mm |
| Insert Thickness (Inch) | 0.313" |
| Coating Process | MT-CVD |
| Coating | 6630 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 3 mm |
| Min Depth of Cut (Inch) | 0.118" |
| Chipbreaker Manufacturer's Designation | 351 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3130"
Thickness (mm):
7.94mm
interval quantity:
10
