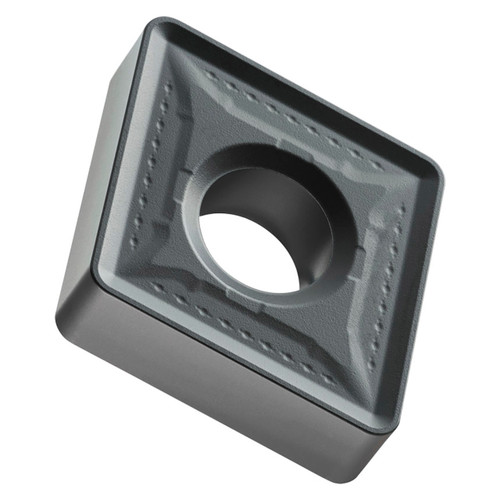

Single-sided negative turning insert, square with inscribed circle diameter of 25.4 mm, 9.52 mm thick, 2.4 mm nose radius and indexing accuracy according to ISO-tolerance class-M, chip-breaker HR2, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for heavy to extra heavy machining of steels.
Product Specifications
| EDP Number | 7015751 |
| Max Depth of Cut (mm) | 16 mm |
| Max Depth of cut (Inch) | 0.63" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 9.12 mm |
| Fixing Hole Diameter (Inch) | 0.359" |
| Cutting Edge Length (mm) | 25.4 mm |
| Cutting Edge Length (Inch) | 1" |
| Inscribed Circle Diameter (mm) | 25.4 mm |
| Inscribed Circle Diameter (Inch) | 1" |
| Insert Thickness (mm) | 9.525 mm |
| Insert Thickness (Inch) | 0.375" |
| Corner Radius (mm) | 2.4 mm |
| Corner Radius (Inch) | 0.094" |
| Coating Process | MT-CVD |
| Coating | T9315 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 3 mm |
| Min Depth of Cut (Inch) | 0.118" |
| Chipbreaker Manufacturer's Designation | HR2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1"
Length (Decimal Inch):
1.0000"
Length (mm):
25.4mm
Inscribed Circle (Inch):
1"
Inscribed Circle (Decimal Inch):
1.0000"
Inscribed Circle (mm):
25.4mm
Thickness (Inch):
3/8"
Thickness (Decimal Inch):
0.3750"
Thickness (mm):
9.525mm
Corner Radius (Inch):
3/32"
Corner Radius (Decimal Inch):
0.0940"
Corner Radius (mm):
2.4mm
interval quantity:
10
