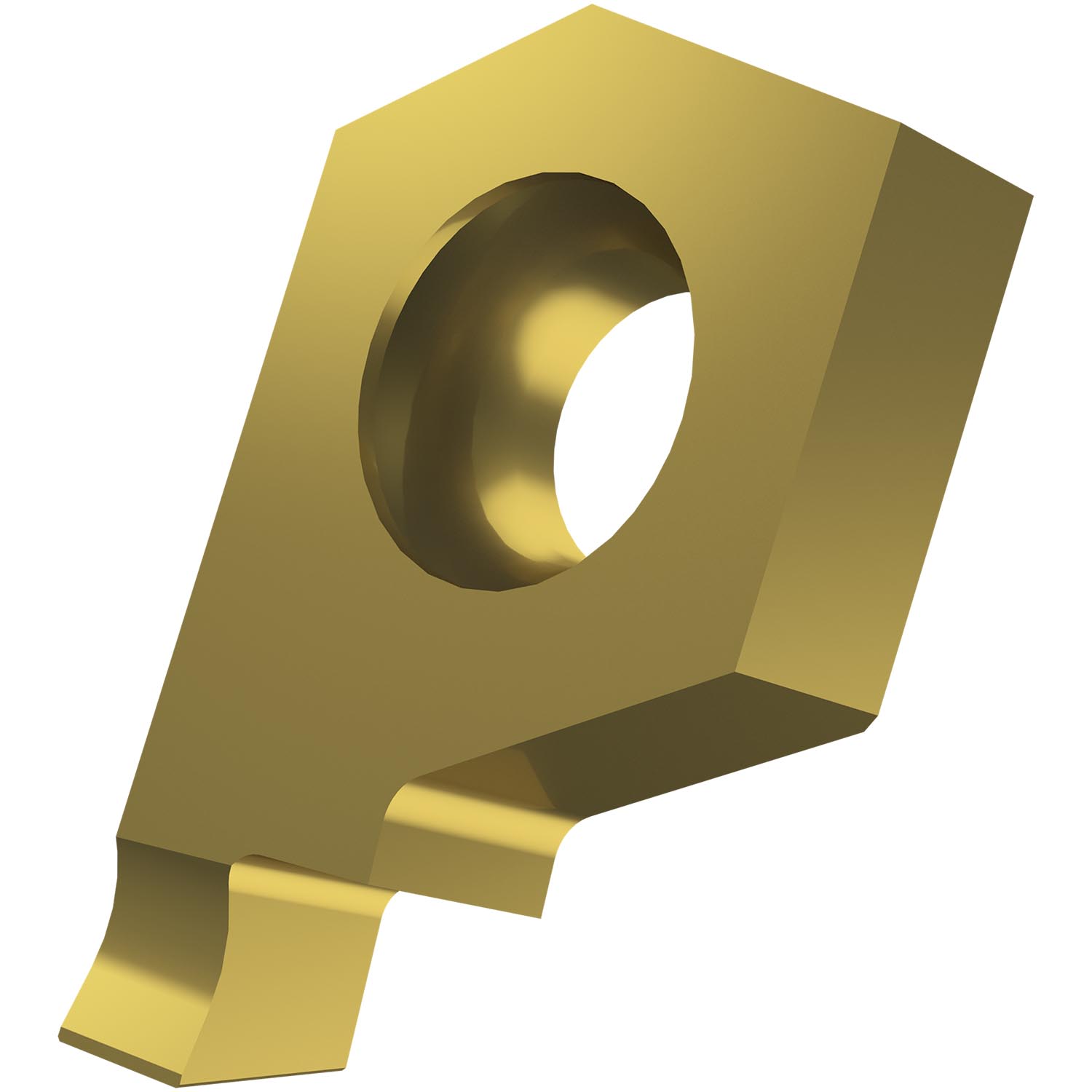

Single ended circlip grooving insert, with a 1.35 mm cutting width, a cutting width tolerance of ± 0.03 mm and rounded cutting edges with facet, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with PRAMET P61.SGL-1 and GL6-S.. B parting and grooving tools.
Product Specifications
| EDP Number | 7721609 |
| Cutting Width (Inch) | 0.053" |
| Cutting Width (mm) | 1.35 mm |
| Cutting Width Lower Tolerance (mm) | -0.03 mm |
| Cutting Width Upper Tolerance (mm) | 0.03 mm |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Insert Width (mm) | 6.35 mm |
| Insert Thickness (mm) | 2.33 mm |
| Coating Process | MT-CVD |
| Coating | 6640 |
| Surface Color | Gold |
| Cutting Width Lower Tolerance (Inch) | -0.001" |
| Cutting Width Upper Tolerance (Inch) | 0.001" |
| Chipbreaker Manufacturer's Designation | With chipbreaker -no designation |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
3/64"
Cutting Width (Decimal Inch):
0.0530"
Cutting Width (mm):
1.35mm
Finish/Coating:
6640
interval quantity:
10
