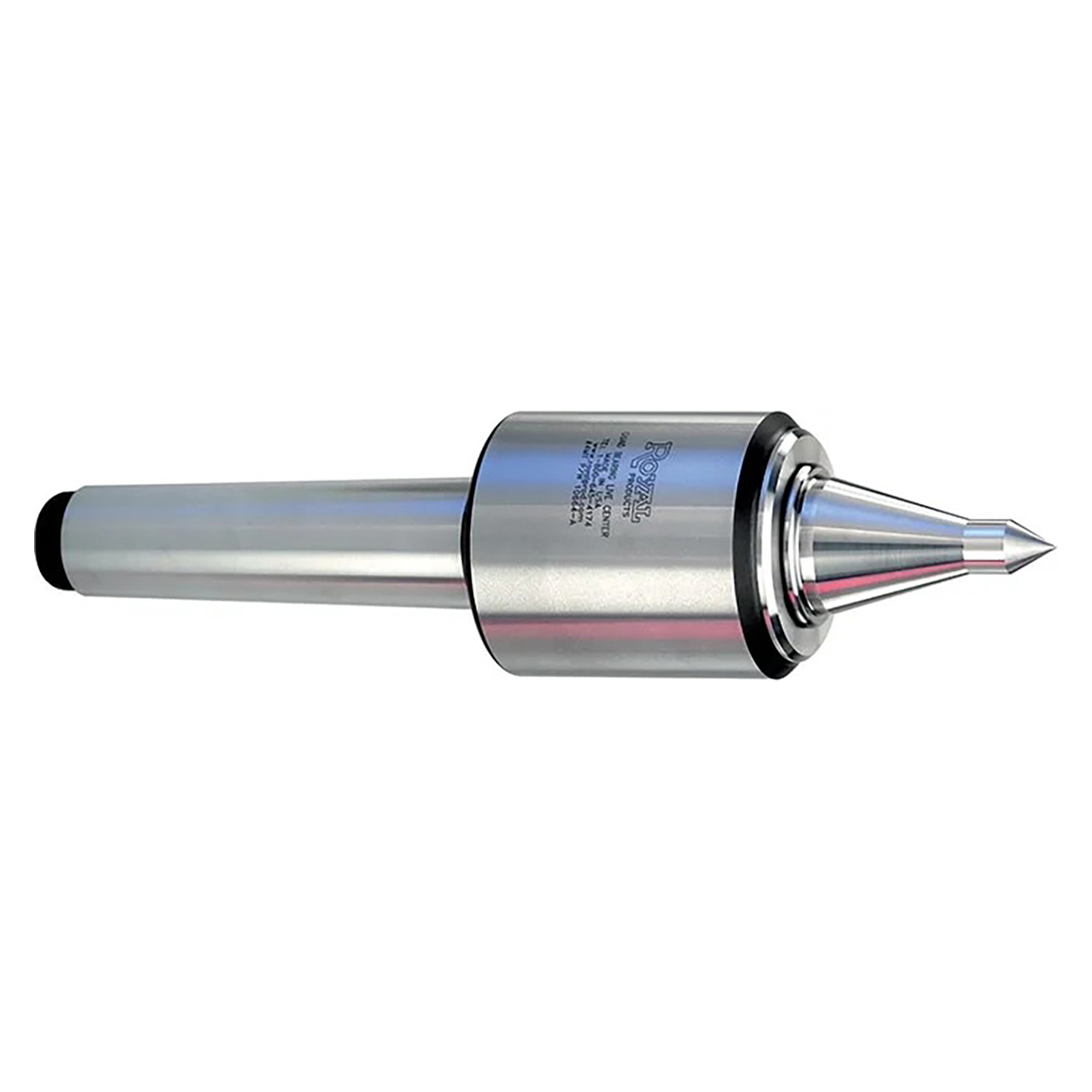

- An excellent choice for precision turning, grinding, and hard-turning
- Precision, preloaded bearing assembly provides exceptional rigidity and accuracy
- Low-profile head and extended point combine to offer superior tool clearance
- Exclusive Roto-Shield coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life
- Body and point are hardened and ground for strength and long life
Product Specifications
| Center Dimension A (Center Taper) | 5 MT HD |
| Center Dimension B (Inch) | 3.82 |
| Center Dimension E (Inch) | 3.890 |
| Weight of Workpiece (lbs.) | 2,210 |
| Center Dimension F (Inch) | 3.34 |
| Center Dimension G (Inch) | 2.00 |
| Center Dimension H (Inch) | 0.75 |
| Center Dimension I (Inch) | 1.28 |
| Max Suggested RPM | 3,000 |
| Thrust Load (lbs.) | 5,300 |
