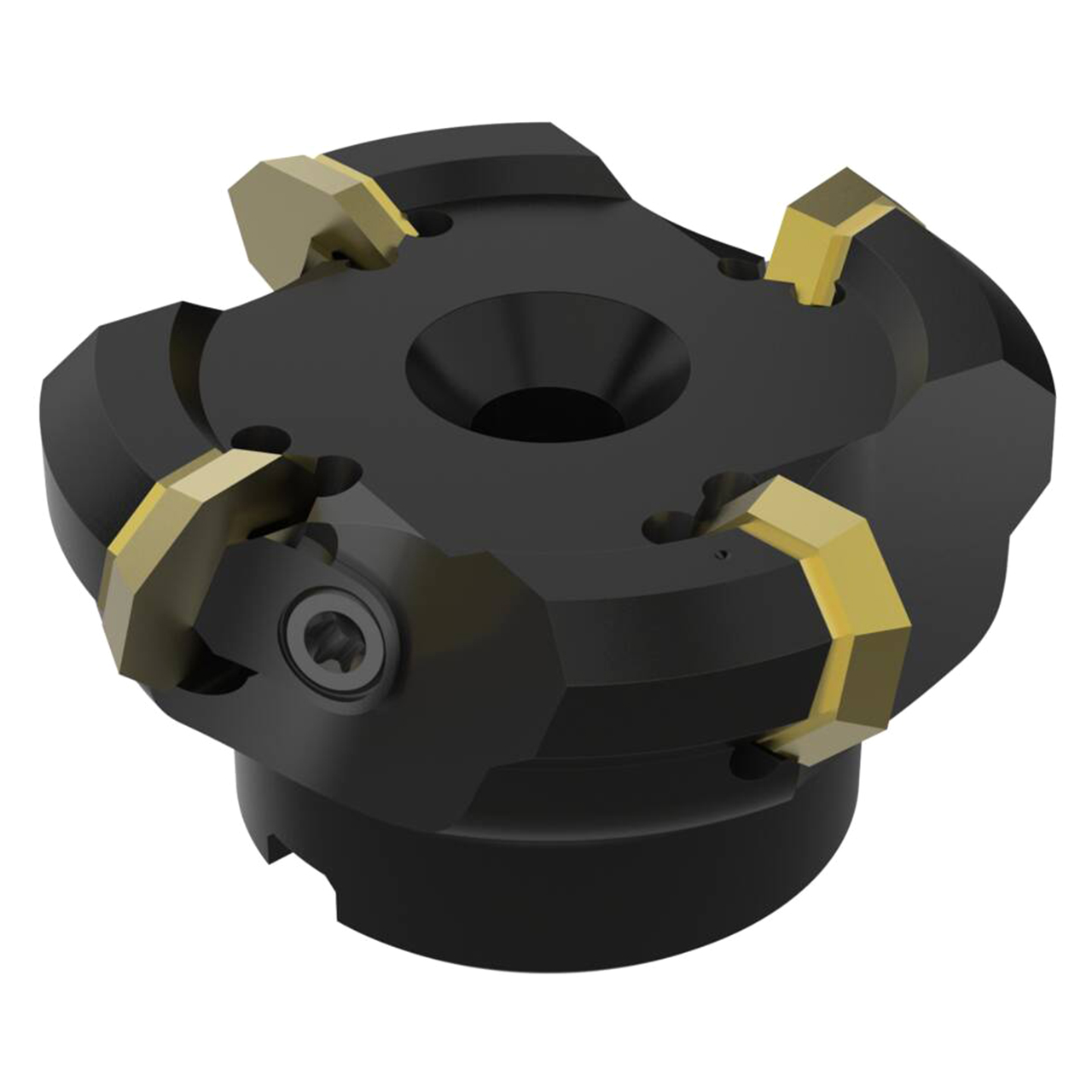

Product Specifications
| Manufacturer Part Number | 00034758 |
| Cutting Diameter (mm) | 50.00mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Maximum Cutting Diameter (mm) | 62.00mm |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Functional Length (mm) | 60.00mm |
| Keyway Width (mm) | 10.40mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Depth of Key Way (mm) | 6.30mm |
| Tool Cutting Edge Angle (Degree) | 43 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 43 Degree |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Orthogonal Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 6300 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | OF..0704 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Insert Shape Code | O |
| Product Type | Indexable Face Mills |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-31/32"
Cutting Diameter (Decimal Inch):
1.9700"
Cutting Diameter (mm):
50.00mm
interval quantity:
1
