Product Specifications

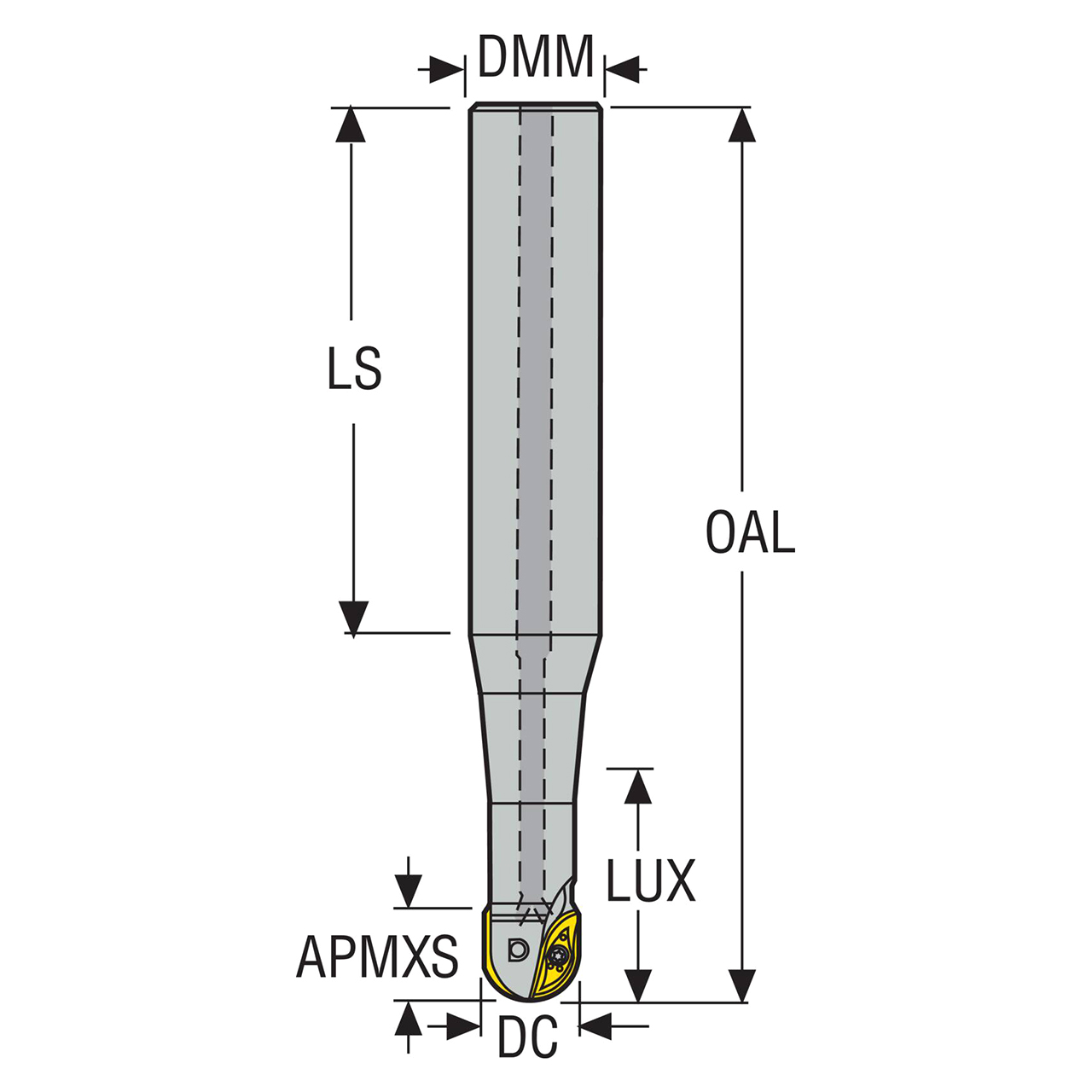

| Manufacturer Part Number | 00040031 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Protruding Length (Decimal Inch) | 4.797" |
| Protruding Length (mm) | 121.84mm |
| Shank Length (Decimal Inch) | 4.248" |
| Shank Length (mm) | 107.90mm |
| Overall Length (Decimal Inch) | 7.002" |
| Overall Length (mm) | 177.84mm |
| Maximum Depth of Cut (mm) | 17.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.669" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Maximum Rotational Speed (rpm) | 20200 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Insert Shape Code | 218.20 |
| Shank Type | Cylindrical |

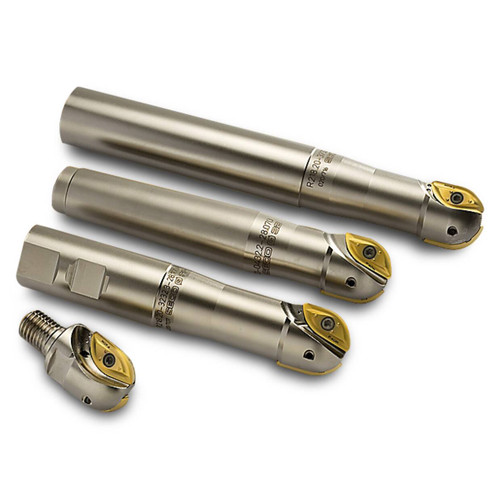

| Product Type | Indexable Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
interval quantity:
1
