Seco Tools 00094820 | 0.500" Inscribed Circle Diameter x 0.032" Radius x 0.204" Thickness 4 Cutting Edge Carbide Milling Insert

$17.96
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
10/49"
Thickness (Decimal Inch):
0.2040"
Thickness (mm):
5.17mm
interval quantity:
1
SKU:
23276003
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 00094820 | 0.500" Inscribed Circle Diameter x 0.032" Radius x 0.204" Thickness 4 Cutting Edge Carbide Milling Insert

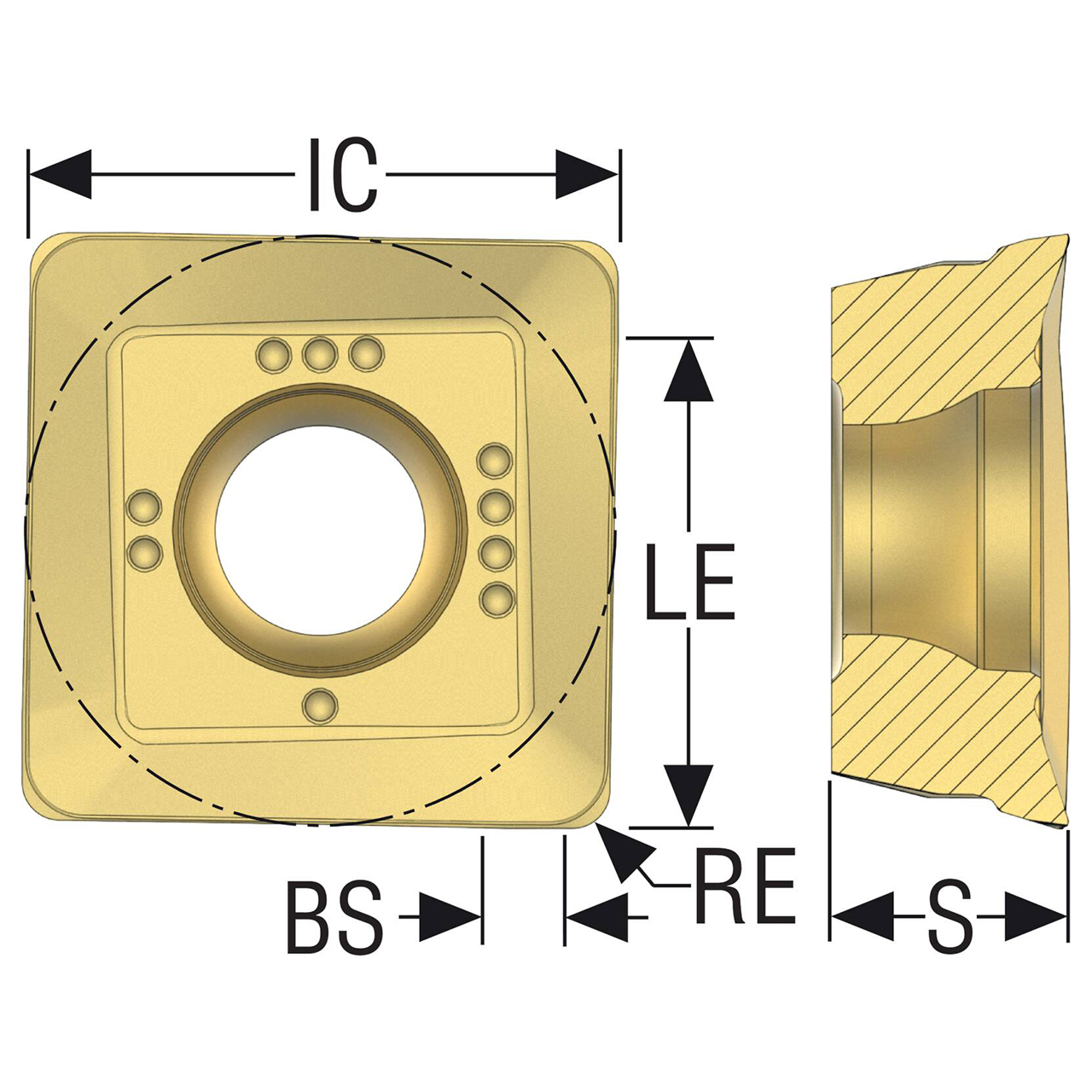

Product Specifications
Manufacturer Part Number00094820
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Inscribed Circle Diameter (Decimal Inch)0.500"
Inscribed Circle Diameter (mm)12.70mm
Wiper Edge Length (Decimal Inch)0.039"
Wiper Edge Length (mm)1.00mm
Cutting Edge Effective Length (Decimal Inch)0.433"
Cutting Edge Effective Length (mm)11.00mm
Corner Radius (Decimal Inch)0.032"
Corner Radius (mm)0.80mm
Insert Thickness (Decimal Inch)0.204"
Insert Thickness (mm)5.17mm
Clearance Angle Major (Degree)15 Degree
Cutting Edge Count4
Cutting Geometry Type TechnicalM12
Pocket Seat Code of The CutterSO.X1205
Insert Size And ShapeSONX1205
Insert Included Angle (Degree)90 Degree
Insert Rake Angle (Degree)16 Degree
Insert HandRight Hand
MaterialCarbide
Product TypeMilling Insert
