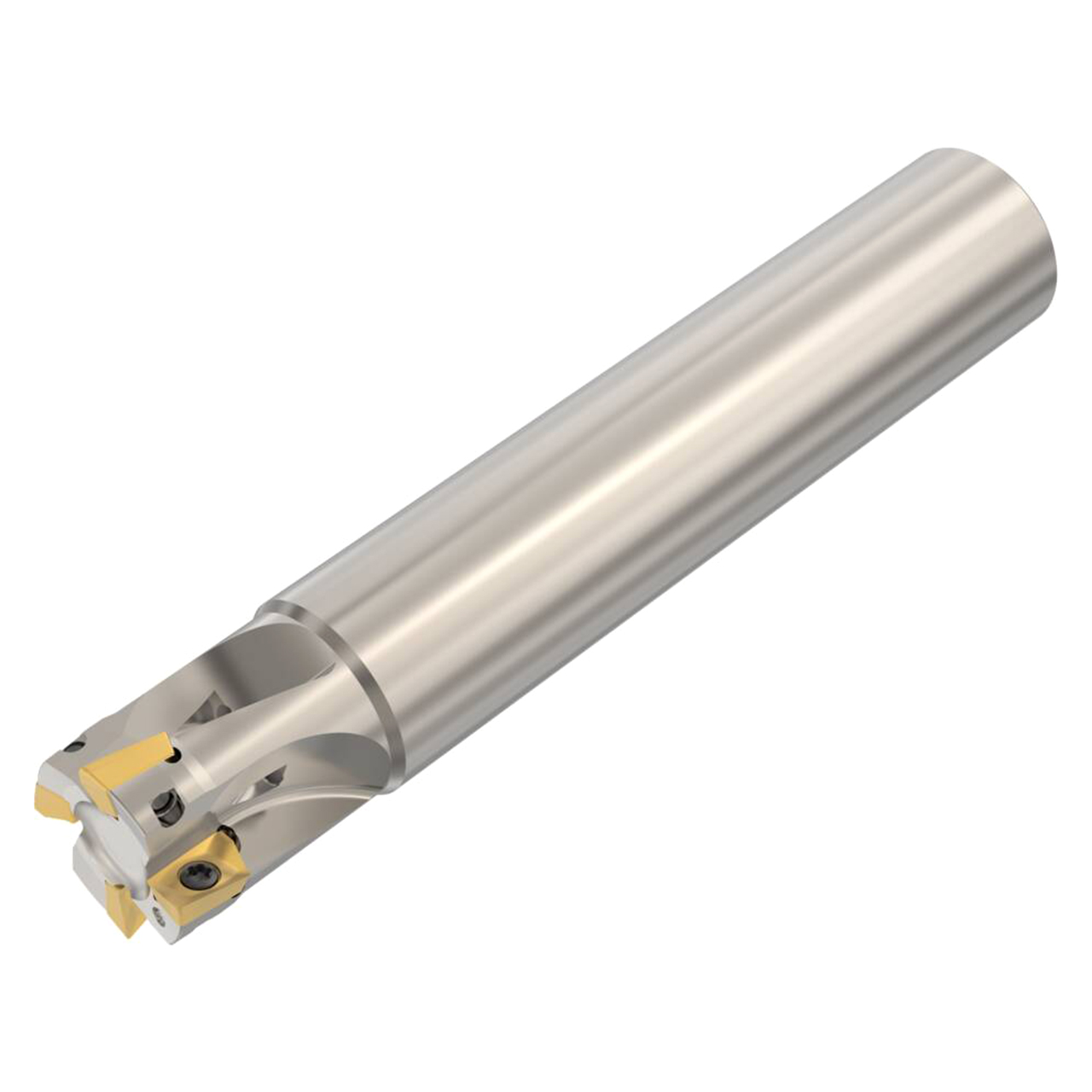

Product Specifications
| Manufacturer Part Number | 02694891 |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Cutting Diameter (mm) | 15.88mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.024" |
| Minimum Helical Interpolation Hole Diameter (mm) | 26.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.201" |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.50mm |
| Protruding Length (Decimal Inch) | 1.654" |
| Protruding Length (mm) | 42.00mm |
| Shank Length (Decimal Inch) | 2.756" |
| Shank Length (mm) | 70.00mm |
| Overall Length (Decimal Inch) | 3.543" |
| Overall Length (mm) | 90.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.197" |
| Maximum Depth of Cut (mm) | 5.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -7.3 Degree |
| Rake Orthogonal Angle (Degree) | -7.3 Degree |
| Maximum Ramping Angle (Degree) | 4 Degree |
| Maximum Rotational Speed (rpm) | 48000 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XO.X0602 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Cylindrical |
| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

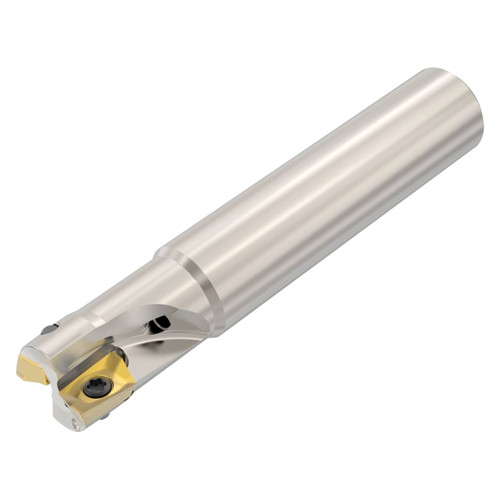

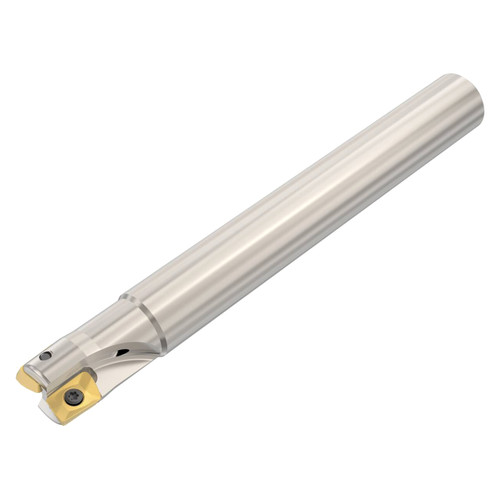

Related Products
