Product Specifications
| Manufacturer Part Number | 02823807 |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.811" |
| Minimum Cutting Diameter Internal (mm) | 46.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 4.134" |
| Functional Length (mm) | 105.00mm |
| Head Length (Decimal Inch) | 3.295" |
| Head Length (mm) | 83.70mm |
| Usable Length (Decimal Inch) | 3.295" |
| Usable Length (mm) | 83.70mm |
| Functional Width (Decimal Inch) | 0.976" |
| Functional Width (mm) | 24.78mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Seco-Capto |

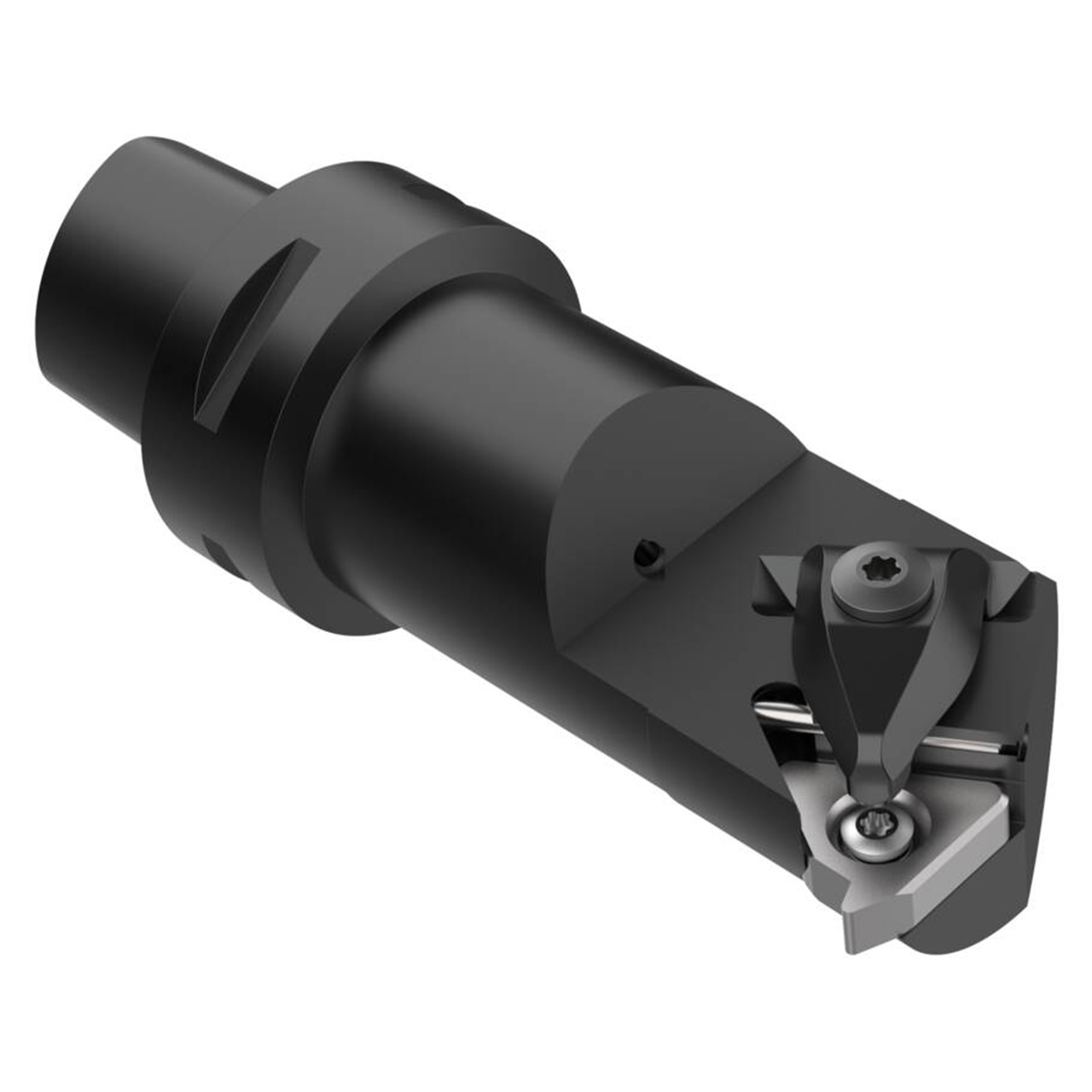

| Product Type | Indexable Threading Toolholder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Direction:
Left
Head Length (Decimal Inch):
3.2953"
Head Length (mm):
83.70mm
Usable Length (Decimal Inch):
3.2953"
Usable Length (mm):
83.70mm
Shank Type:
Seco-Capto
