Product Specifications

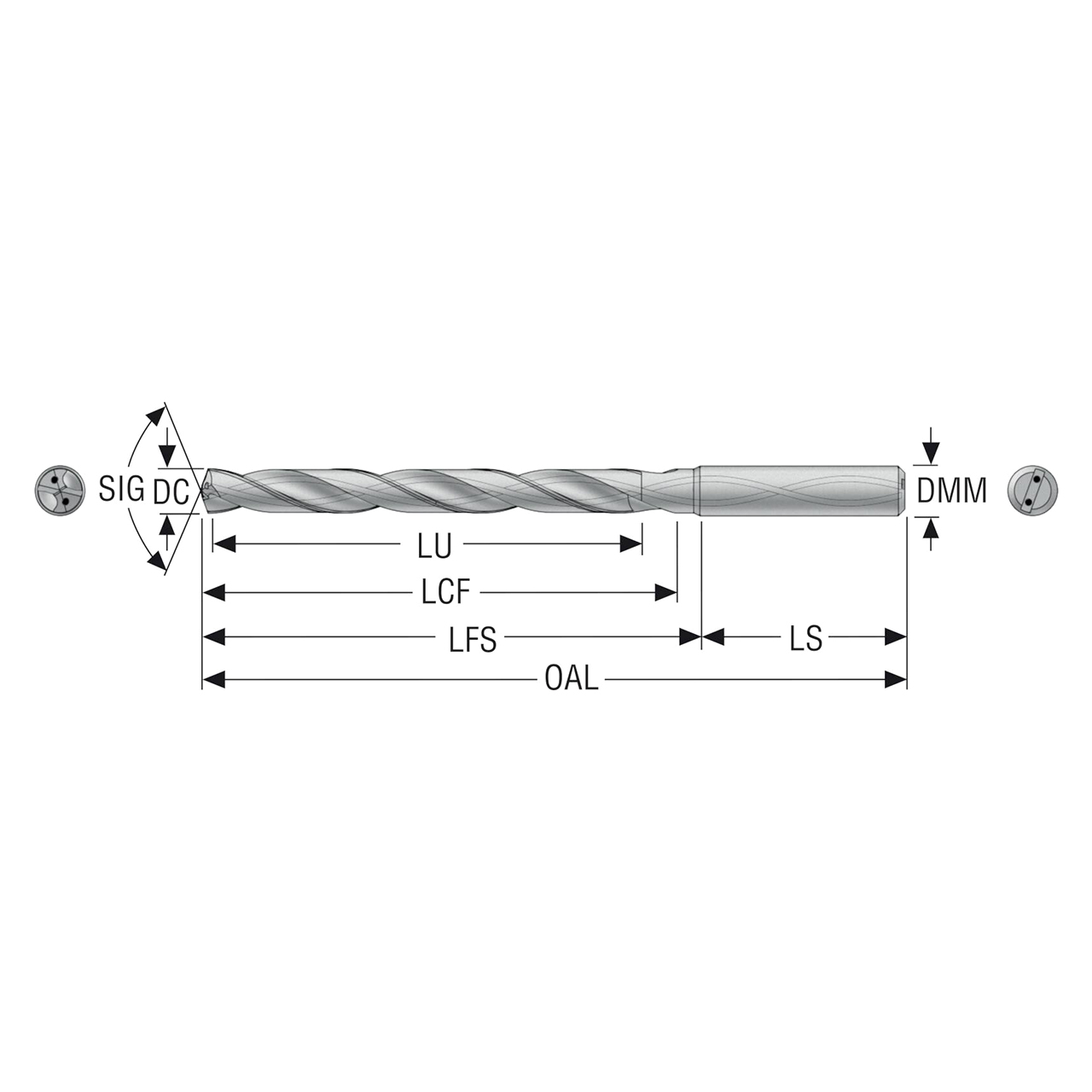

| Manufacturer Part Number | 03295046 |
| Cutting Diameter (mm) | 9.70mm |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Chip Flute Length (mm) | 95.00mm |
| Functional Length Secondary (mm) | 99.00mm |
| Shank Length (mm) | 40.00mm |
| Usable Length (mm) | 80.00mm |
| Overall Length (mm) | 139.00mm |
| Point Length (mm) | 1.77mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

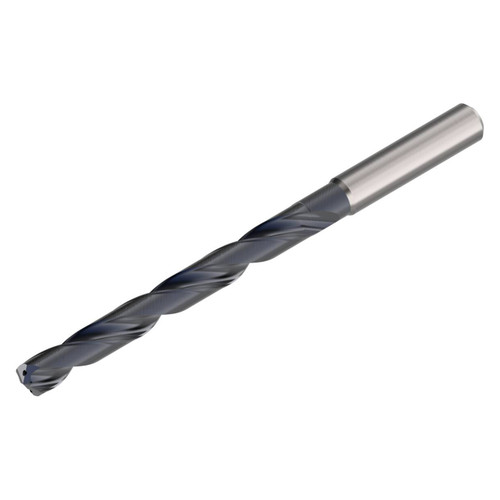

| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Shank Type:
Cylindrical
Flute Length (Inch):
3-47/64"
Flute Length (Decimal Inch):
3.7400"
Flute Length (mm):
95.00mm
Overall Length (Inch):
5-15/32"
Overall Length (Decimal Inch):
5.4700"
Overall Length (mm):
139.00mm
Drill Point Angle:
140 Degree
Material:
Carbide
interval quantity:
1
