Product Specifications

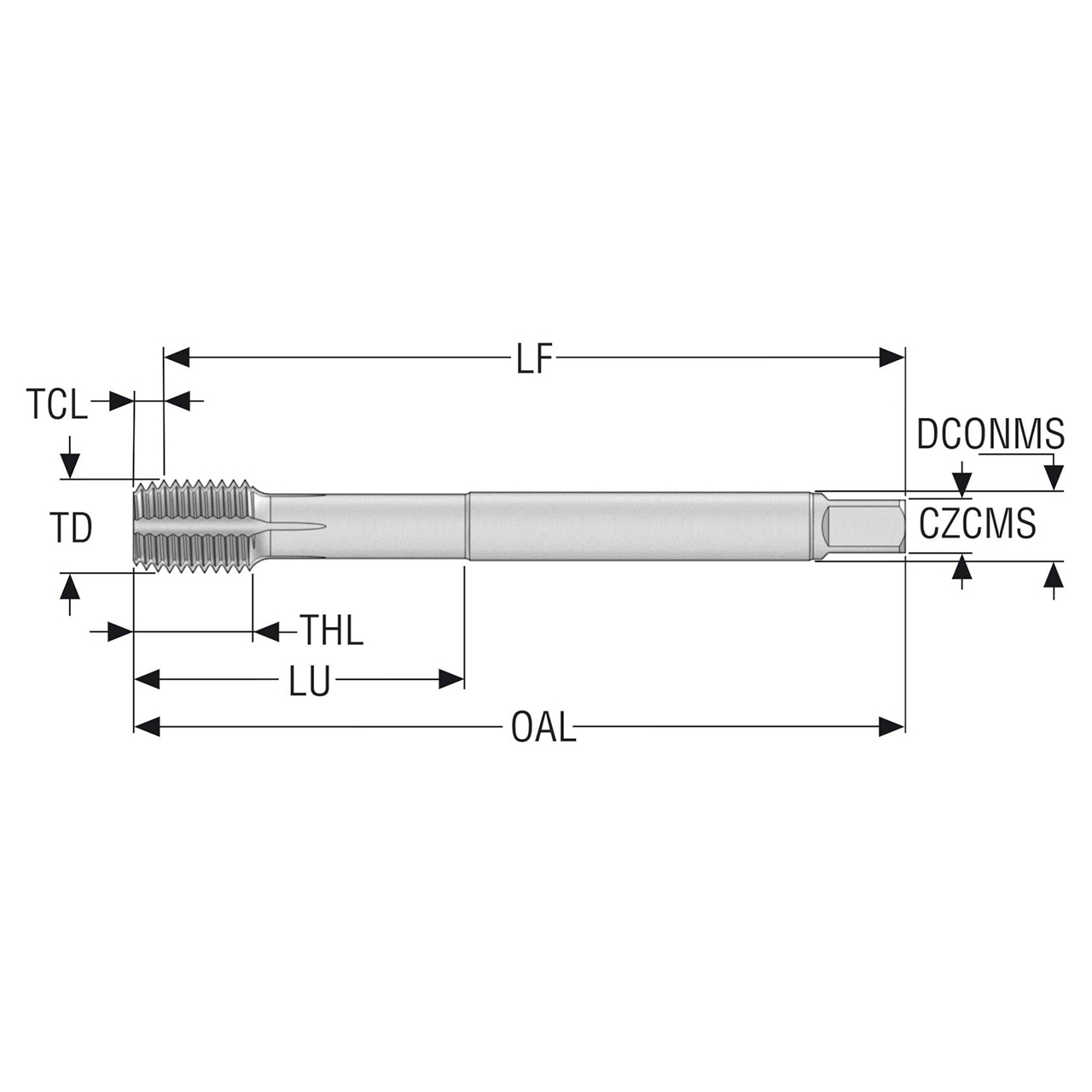

| Manufacturer Part Number | 10139276 |
| Thread Diameter (Decimal Inch) | 0.472" |
| Thread Diameter (mm) | 12.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.129" |
| Threading Chamfer Length (mm) | 3.27mm |
| Tap Chamfer Length (Decimal Inch) | 0.129" |
| Tap Chamfer Length (mm) | 3.27mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.354" |
| Connection Diameter Machine Side (mm) | 9.00mm |
| Shank Diameter (Decimal Inch) | 0.354" |
| Shank Diameter (mm) | 9.00mm |
| Functional Length (Decimal Inch) | 3.808" |
| Functional Length (mm) | 96.73mm |
| Usable Length (Decimal Inch) | 2.874" |
| Usable Length (mm) | 73.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.00mm |
| Thread Diameter Size | MF12X1.0 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.457" |
| Recommended Premachined Hole Diameter (mm) | 11.60mm |
| Connection Size Code | 9.00X7.00 |
| Connection Size Code Machine Side | 9.00X7.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.457" |
| Maximum Premachined Hole Diameter (mm) | 11.60mm |
| Minimum Thread Pitch (Decimal Inch) | 0.039" |
| Minimum Thread Pitch (mm) | 1.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.039" |
| Maximum Thread Pitch (mm) | 1.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E-PM |
| Coating | TiCN |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Thread Size:
MF12X1.0
Number of Flutes:
5
Finish/Coating:
TiCN
Material:
HSS-E-PM
Thread Standard:
MF
interval quantity:
1
