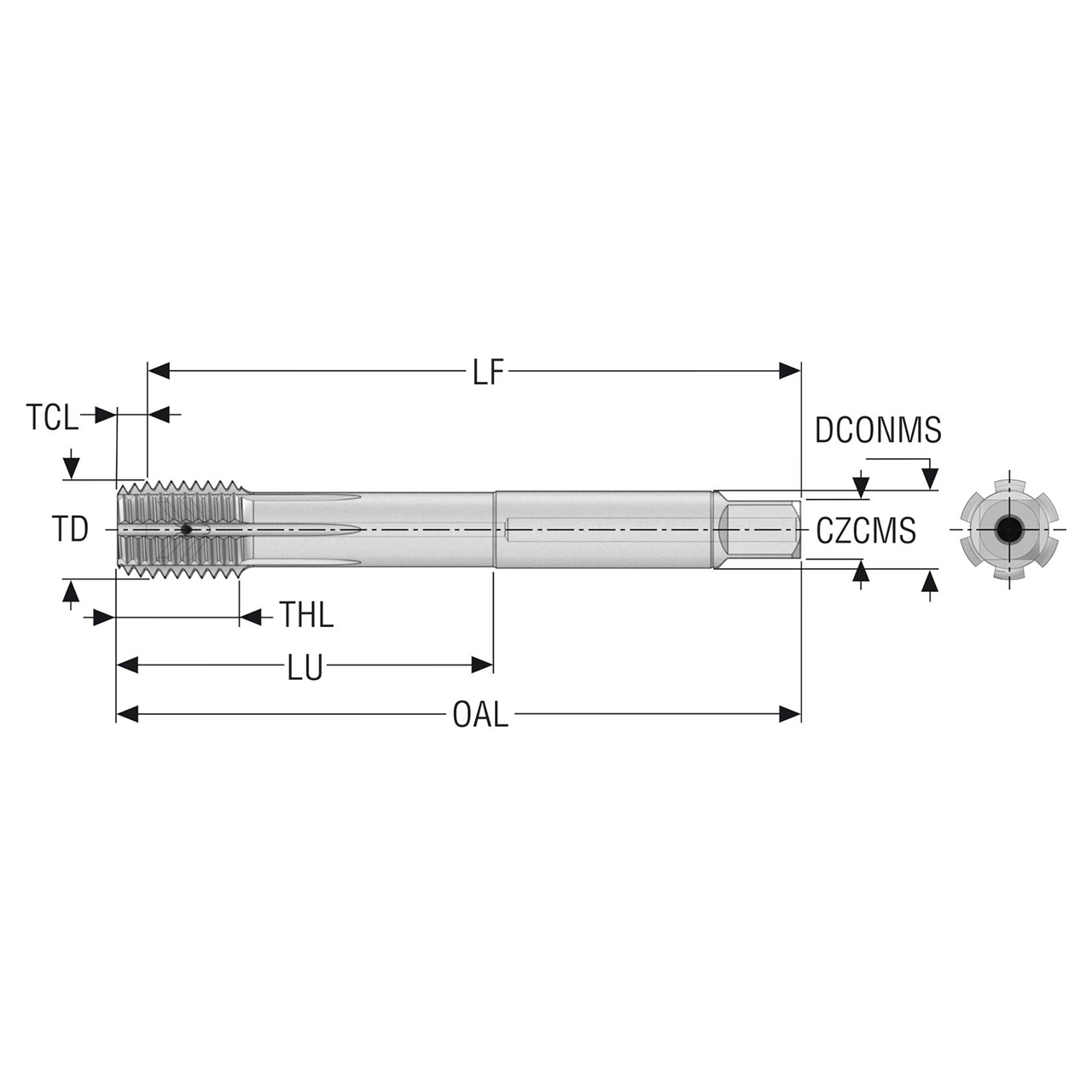

| Manufacturer Part Number | 10208936 |
| Thread Diameter (mm) | 12.00mm |
| Threading Chamfer Length (mm) | 3.96mm |
| Tap Chamfer Length (mm) | 3.96mm |
| Connection Diameter Machine Side (mm) | 9.00mm |
| Shank Diameter (mm) | 9.00mm |
| Functional Length (mm) | 95.90mm |
| Usable Length (mm) | 73.00mm |
| Overall Length (mm) | 100.00mm |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | MF12X1.25 |
| Recommended Premachined Hole Diameter (mm) | 11.45mm |
| Connection Size Code | 9.00x7.00 |
| Connection Size Code Machine Side | 9.00x7.00 |
| Maximum Premachined Hole Diameter (mm) | 11.45mm |
| Minimum Thread Pitch (mm) | 1.25mm |
| Maximum Thread Pitch (mm) | 1.25mm |
| Number of Flute | 5 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E-PM |
| Coating | TiCN |

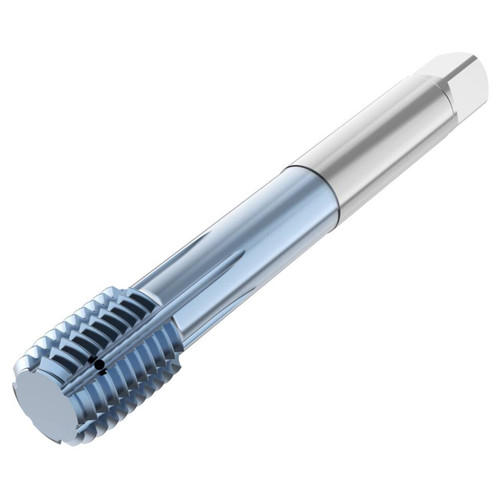

| Product Type | Thread Forming Tap |
