Seco Tools 10198755 | SEEX09T3AFTN-M08 0.30mm Corner Radius x 3.97mm Thickness 4 Cutting Edge Carbide Milling Insert

$22.20 $17.09
(You save $5.11)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3752"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
interval quantity:
10
SKU:
23295198
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 10198755 | SEEX09T3AFTN-M08 0.30mm Corner Radius x 3.97mm Thickness 4 Cutting Edge Carbide Milling Insert

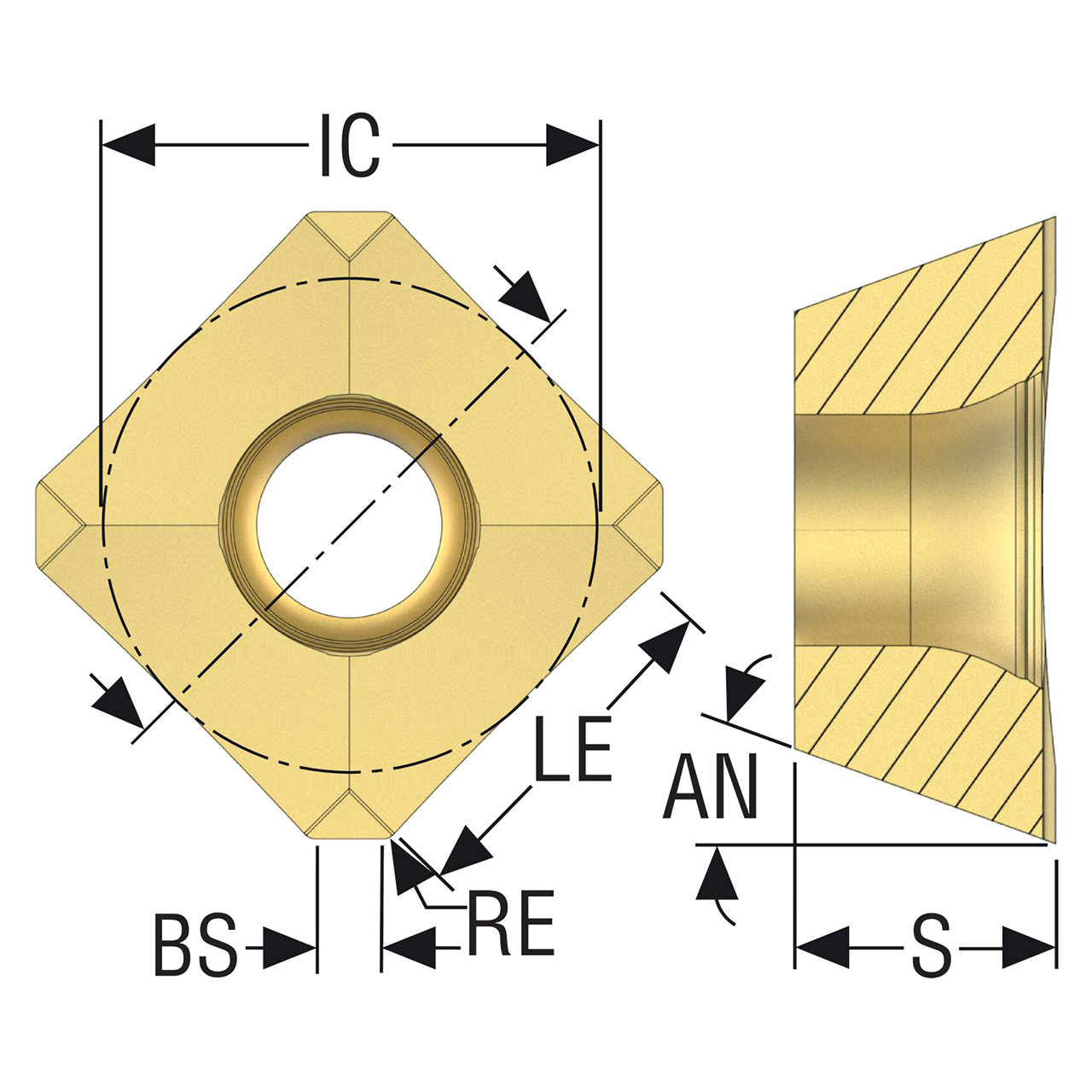

Product Specifications
Manufacturer Part Number10198755
Fixing Hole Diameter (mm)3.50mm
Inscribed Circle Diameter (mm)9.53mm
Cutting Edge Effective Length (mm)7.10mm
Theoretical Cutting Edge Length (mm)9.52mm
Wiper Edge Length (mm)1.50mm
Corner Radius (mm)0.30mm
Insert Thickness (mm)3.97mm
Cutting Edge Count4
Clearance Angle Major (Degree)20 Degree
Insert HandNeutral
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM08
Pocket Seat Code of The CutterSE.X09T3
Insert Size And ShapeSEEX09T3
Insert Shape CodeS
MaterialCarbide
Product TypeMilling Insert
