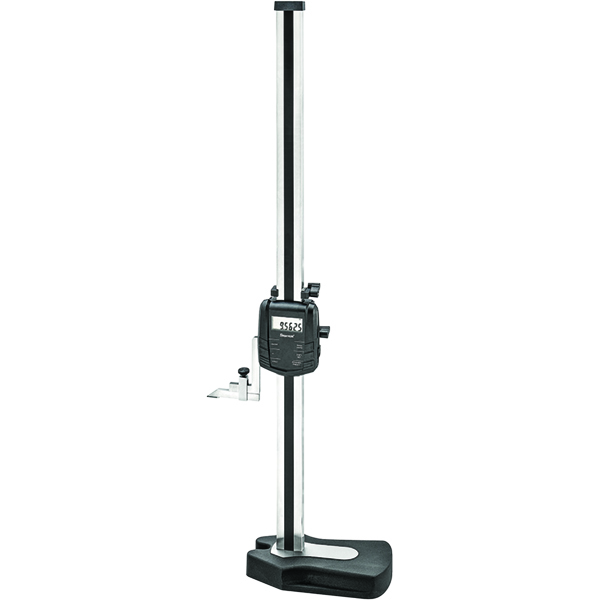

Features
- Clear bar graduations in .100" and 5mm increments
- Large (9.65mm/3/8"), easy-to-read LCD display reads to 0.01mm or .0005"
- Instant unit conversion
- Carrier and scriber designed to read from zero
- Hold control feature retains a reading at any position
- Plus or minus indication allows reading in proper direction
- Ability to set zero at any position
- Manual on/off plus a built-in automatic off after 30 minutes of non-use to conserve battery life.
- Large positive action keypad
- Ability to retain and return to the true zero reading of the height gage
- PRESET button to install any reading at any position
- Ability to install minimum and maximum limits
- RS232 data output port
- Works well with Starrett DatasureWireless Data Collection Systems
- 1-1/2+ years battery life. Two batteries furnished (CR2032).
- The base is well-balanced, hardened, ground and lapped.
Product Specifications
| Range (in) | 0-24" |
| Range (mm) | 0-600mm |
| Resolution (in) | .0005" |
| Resolution (mm) | 0.01mm |
| Accuracy (in) | (+/-)0.0015" for 0-18"; (+/-)0.002" for 18-24" |
| Accuracy (mm) | (+/-)0.04mm for 0-450mm; (+/-)0.05mm for 450-600mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Maximum Measurement (Inch):
24"
Maximum Measurement (Decimal Inch):
24.0000"
Maximum Measurement (mm):
600mm
Resolution (Inch):
0 "
Resolution (Decimal Inch):
0.0005"
Resolution (mm):
0.01mm
Accuracy (Inch):
0"
Accuracy (Decimal Inch):
(+/-)0.0015 for 0-18"
Accuracy (mm):
(+/-)0.04mm for 0-450mm; (+/-)0.05mm for 450-600mm
Ships:
From Manufacturer
