Features
- Wide measurement range without changing anvils
- Carbide measuring faces on sizes above 1/2" (12.5mm) diameter
- Extensions available for deep holes
- Precision ratchet stop provides correct contact pressure for accurate readings
- Each micrometer bore gage with head comes with a wooden case, complete with setting ring, contacts, adjusting wrench, spare battery, and instructions
- IP65 level of protection against coolant, water, dirt and dust
- Large high-contrast LCD digital readout is easy to read and reduces error
- RS232 output
- Includes instant inch/millimeter conversion and preset + and - functions
- Proximity output with optional built-in Bluetooth
- Bi-directional communication
Product Specifications
| Range (in) | 1/2 - 5/8" |
| Range (mm) | 12.5-16mm |
| Resolution (in) | .00005" |
| Resolution (mm) | 0.001mm |
| SPC Output | SPC Output |
| Approximate Measuring Depth (in) | 2-3/8" |
| Approximate Measuring Depth (mm) | 62mm |
| Accuracy (in) | .00015" |
| Accuracy (mm) | .004mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

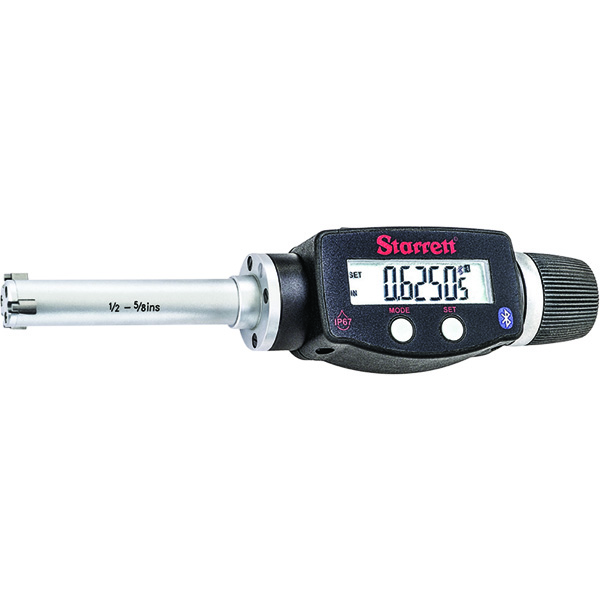

Brand:
Starrett
Type:
Internal Micrometer
Minimum Measurement (Inch):
1/2"
Minimum Measurement (Decimal Inch):
0.5000"
Minimum Measurement (mm):
12.50mm
Maximum Measurement (Inch):
5/8"
Maximum Measurement (Decimal Inch):
0.6250"
Maximum Measurement (mm):
16mm
Gage Depth (Inch):
2-3/8"
Gage Depth (Decimal Inch):
2.3750"
Gage Depth (mm):
62mm
Resolution (Inch):
0"
Resolution (Decimal Inch):
0.0005"
Resolution (mm):
0.001mm
Ships:
From Manufacturer
