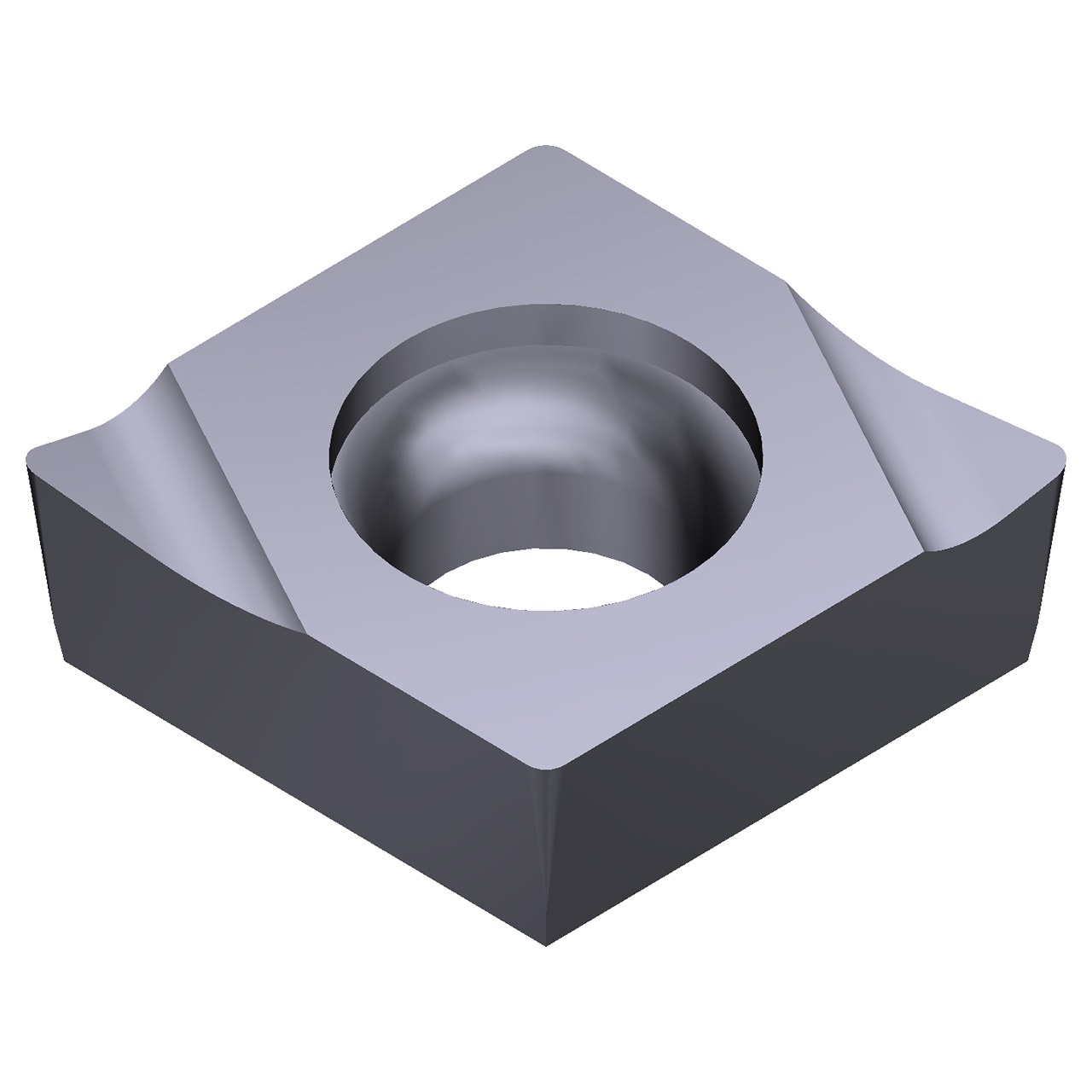

Product Specifications
| EDP Number | 10T6ART |
| Product Code-ANSI | CCGT03X104RFY-AC5025S |
| Product Code-ISO | CCGT03X104R-FY |
| Manufacturer Grade Identification | AC5025S |
| Series | AC5000S |
| Cutting Edge Length (Decimal Inch) | 0.1398" |
| Cutting Edge Length (mm) | 3.55mm |
| Nose Radius (Decimal Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.1378" |
| Inscribed Circle Diameter (mm) | 3.50mm |
| Hole Diameter (mm) | 1.90mm |
| Insert Thickness (Decimal Inch) | 0.0551" |
| Insert Thickness (mm) | 1.40mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | G |
| Chip Breaker | RFY |
| Corner Angle | 80 |
| Insert Style | CCGT |
| Secondary Workpiece Material | Stainless Steel |
| Primary Workpiece Material | Heat Resistant Alloy |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | S15, S10, S20 |
| Insert Holding Method | Screw-On |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
CCGT
Insert Size:
03X104
Material:
Carbide
Length (Inch):
1/8"
Length (Decimal Inch):
0.1398"
Length (mm):
3.55mm
Inscribed Circle (Inch):
1/8"
Inscribed Circle (Decimal Inch):
0.1378"
Inscribed Circle (mm):
3.50mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0551"
Thickness (mm):
1.40mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
Manufacturer's Grade:
AC5025S
interval quantity:
10
Ships:
From California in 1-2 Days
