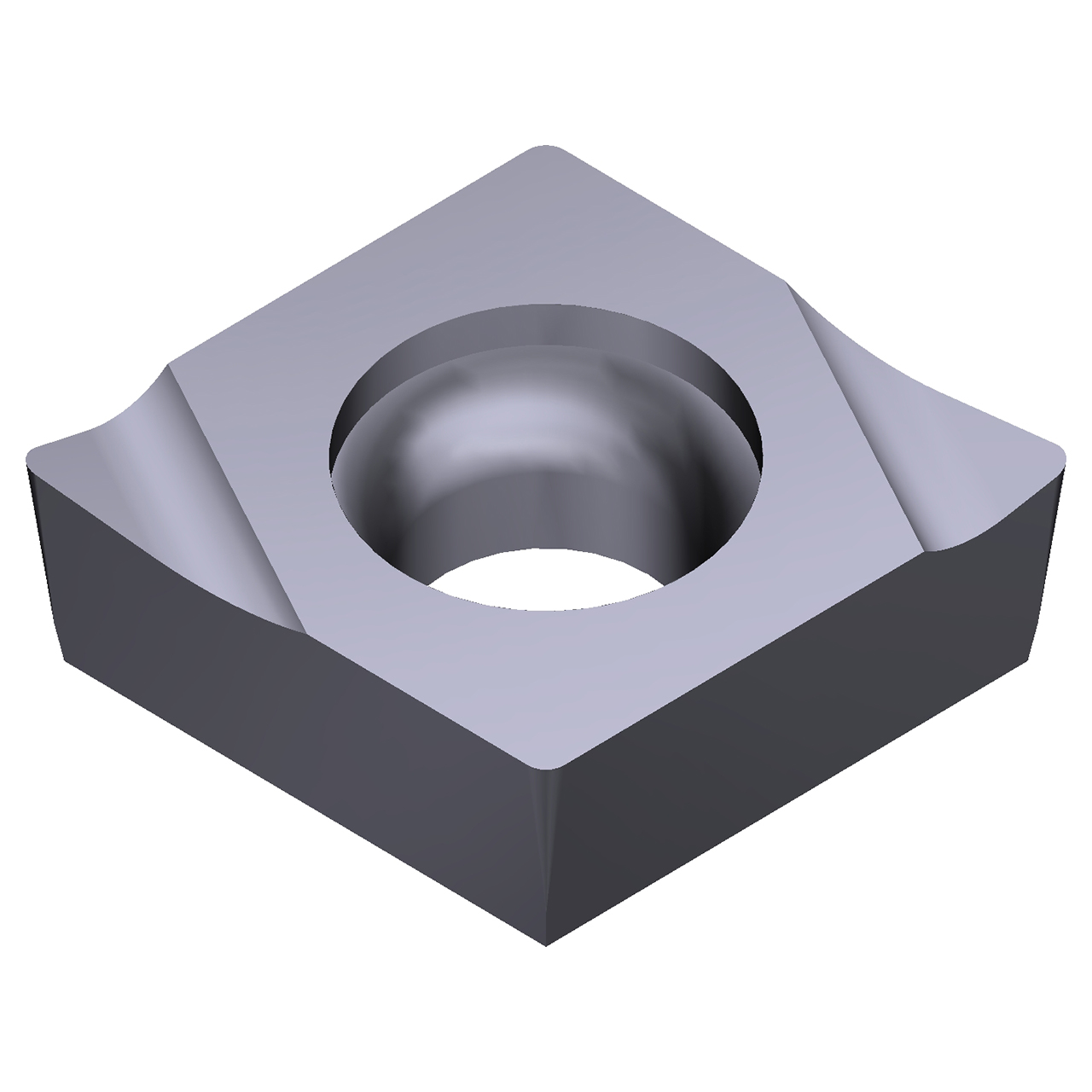

| EDP Number | 10T5ART |
| Product Code-ANSI | CCGT03X104RFY-AC5015S |
| Product Code-ISO | CCGT03X104R-FY |
| Manufacturer Grade Identification | AC5015S |
| Series | AC5000S |
| Cutting Edge Length (Decimal Inch) | 0.1398" |
| Cutting Edge Length (mm) | 3.55mm |
| Nose Radius (Decimal Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.1378" |
| Inscribed Circle Diameter (mm) | 3.50mm |
| Hole Diameter (mm) | 1.90mm |
| Insert Thickness (Decimal Inch) | 0.0551" |
| Insert Thickness (mm) | 1.40mm |
| Relief Angle | 7 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | G |
| Chip Breaker | RFY |
| Corner Angle | 80 |
| Insert Style | CCGT |
| Secondary Workpiece Material | Stainless Steel |
| Primary Workpiece Material | Heat Resistant Alloy |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | S15, S10, S20 |
| Insert Holding Method | Screw-On |
