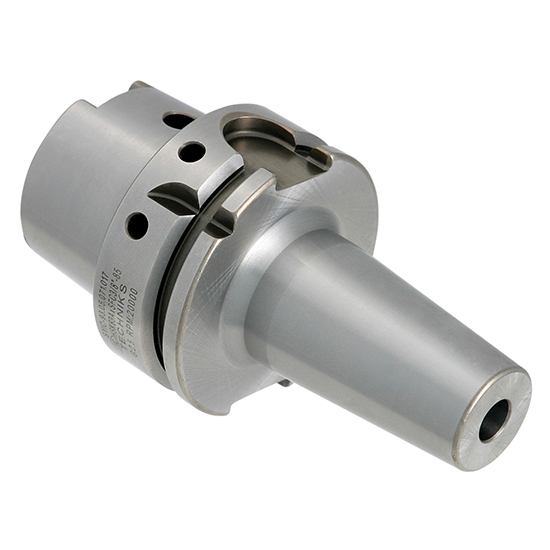

Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Product Specifications
| UNSPSC Code | 27112809 |
| Nose Dia (in) | 0.79 |
| Nose Dia (mm) | 20.1 |
| Body Dia (in) | 1.1 |
| Body Dia (mm) | 27.94 |
| Collet Series | N/A |
| Mount | HSK63A |
| Unit of Tool | Inch |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Shank Size (in) | 0.5 |
| Shank Size (mm) | 12.7 |
| Type | ShrinkFIT Tool Holder |
| Style | Single-Ended |
| Overall Diameter (in) | 2.48 |
| Overall Diameter (mm) | 63 |
| Gage Length (in) | 6.3 |
| Gage Length (mm) | 160 |
| Gage Length-Face Contact (in) | 6.3 |
| Gage Length-Face Contact (mm) | 160 |
| Overall Length (in) | 7.56 |
| Overall Length (mm) | 192 |
| Material | H13 Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Techniks
Taper Size:
HSK63A
Hole Diameter (Decimal Inch):
0.5000"
Hole Diameter (mm):
12.70mm
Projection (Decimal Inch):
6.3000"
Projection (mm):
160mm
Nose Diameter (Decimal Inch):
0.7900"
Nose Diameter (mm):
20.10mm
Through Coolant:
No
Ships:
From Partner Facility
