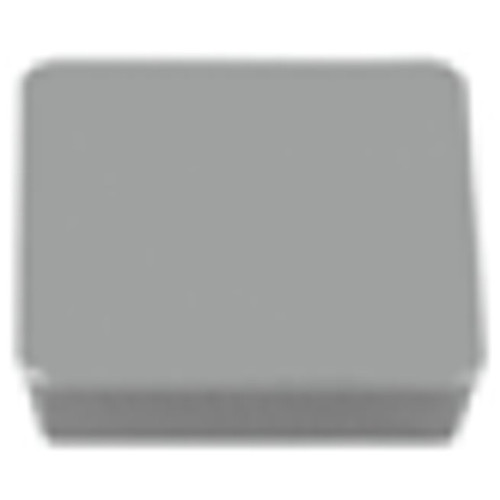

Tungaloy 6807035 | SPEN423FN TH10 1/8" Thickness x 1/2" Insert Length x 0.047" Radius Carbide Milling Insert

$13.60 $8.16
(You save $5.44)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
TH10
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Length (Inch):
1/2"
Length (Decimal Inch):
0.5000"
Length (mm):
12.70mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.17mm
SKU:
23134201
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Flat-top square insert with 11 degree relief angle for 75 degree corner angle.


Product Specifications
Manufacturer Part Number6807035
Corner Radius (Inch)0.0472"
Depth of Cut Maximum (Inch)0.276"
Insert Length (Inch)1/2"
Insert Thickness (Inch)1/8"
Insert Width (Inch)1/2"
Number of Cutting Edges4
ApplicationFace Milling
Body MaterialCarbide
GradeTH10
Cutting Edge MaterialCarbide
Applicable MaterialCast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys
