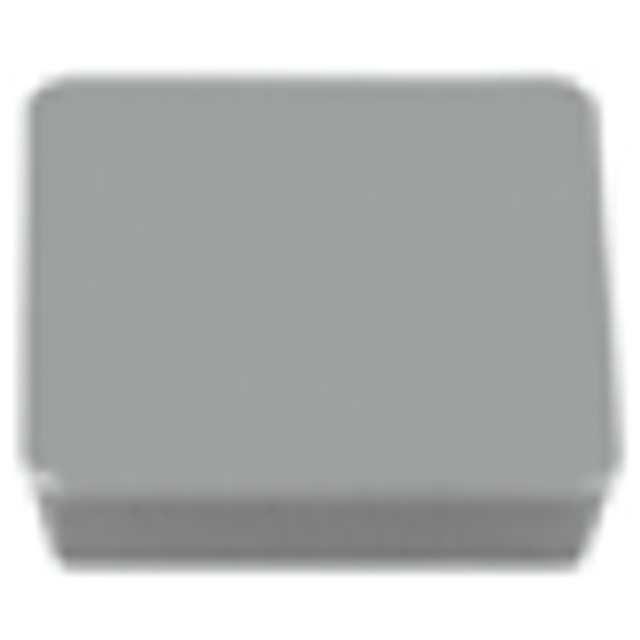

Flat-top square insert with 11 degree relief angle for 75 degree corner angle.
| Manufacturer Part Number | 6807110 |
| Depth of Cut Maximum (Inch) | 0.276" |
| Insert Length (Inch) | 1/2" |
| Insert Thickness (Inch) | 1/8" |
| Insert Width (Inch) | 1/2" |
| Number of Cutting Edges | 4 |
| Wiper Edge Length | 0.055" |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | TH10 |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
