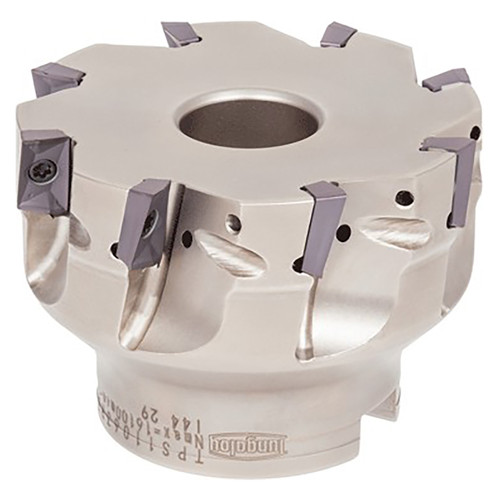

High precision shoulder square milling cutters with ASMT/ASGT11 inserts.
Product Specifications
| Manufacturer Part Number | 6850811 |
| Cutting Diameter (Inch) | 3" |
| Cutting Diameter Maximum (Inch) | 3" |
| Depth of Cut Maximum (Inch) | 0.417" |
| Overall Length (Inch) | 1.969" |
| Functional Length (Inch) | 1.969" |
| Connection Diameter Machine Side (Inch) | 1" |
| Cutting Item Count | 10 |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Steel |
| Application | Shoulder Milling |
| Tool Type | 90 Facemills |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Inch):
3"
Maximum Cutting Diameter (Decimal Inch):
3.0000"
Body Material:
Steel
Cutting Direction:
Right Hand
Maximum Depth of Cut (Decimal Inch):
0.4170"
Overall Length (Decimal Inch):
1.9690"
