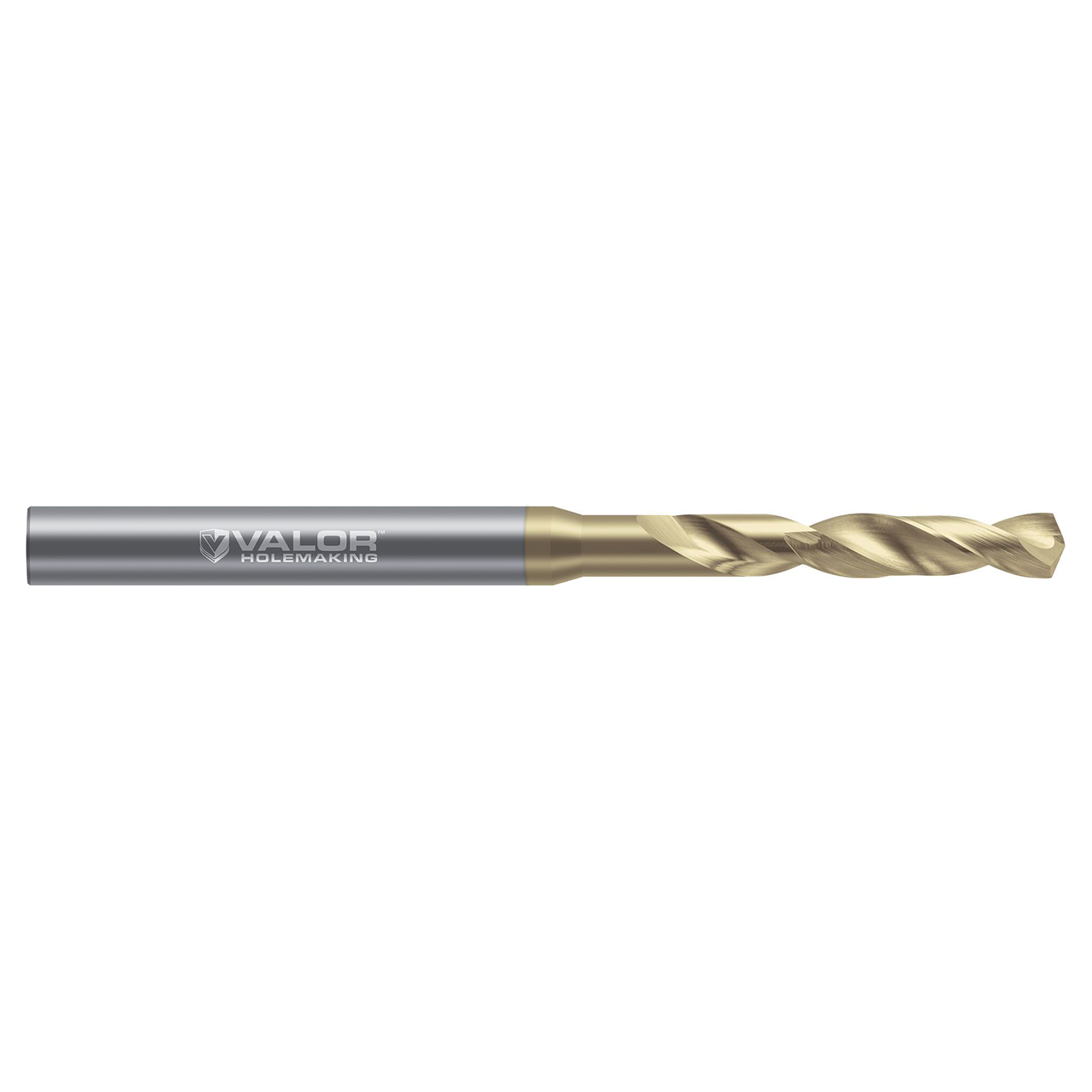

Name: Valor V681558-V | 10.900mm Drill Diameter x 38.000mm Maximum Drill Depth x 100.000mm OAL 2 Flute Val-Max V Coated Screw Machine Length Drill Bit
Brand: Valor
SKU: 10269541
Price: 101.0 USD
Availability: InStock

Valor V681558-V | 10.900mm Drill Diameter x 38.000mm Maximum Drill Depth x 100.000mm OAL 2 Flute Val-Max V Coated Screw Machine Length Drill Bit

$101.00

Brand:

Valor

Flute Length (Inch):

1-3/5"

Flute Length (Decimal Inch):

1.5850"

Flute Length (mm):

40.26mm

Overall Length (Inch):

Overall Length (Decimal Inch):

3.9370"

Overall Length (mm):

100.00mm

Coating:

Val-Max V

Coolant Through:

interval quantity:

SKU:

10269541

UPC:

Weight:

1.23 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Related Products

Features
Reviews
Other Details

Optimized for best-in-class performance in 6061 aluminum, this Valor holemaking offering of high performance drills - aluminum & aluminum alloys features geometry designed to provide minimal entry and exit burrs.

Features:

Provides excellent performance in other non-ferrous alloys
Engineered cylindrical margin design ensures stability and improved performance
Pre and post polish process delivers reduced friction and ensures outstanding chip management
135 Degree point angle with 4-facet geometry for improved self-centering
h6 shank tolerance for high precision tool holders
Proprietary Val-Max V coating delivers outstanding performance in aluminum alloys and other non-ferrous alloys
Solid carbide
Precision manufactured in the USA

Product Specifications

Manufacturer Part Number	V681558-V
Drill Diameter (Inch)	0.4291"
Drill Diameter (mm)	10.900mm
Drill Length (mm)	32.70mm
Flute Length (Inch)	1.670"
Flute Length (mm)	42.42mm
End Length (mm)	2.26mm
Shank Diameter (mm)	12.000mm
Overall Length (mm)	100.000mm
LOC Multiple	(3x)
Point Angle	135 Degree
Metric	Y
Coolant Through	N
Number of Flutes	2
Coating	Val-Max V

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
