Product Specifications
| EDP Number | 01435CN |
| Diameter (Decimal Inch) | 1.1250" |
| Diameter (Inch) | 1-1/8" |
| Diameter (mm) | 28.58mm |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 4.1250" |
| Overall Length (Inch) | 4-1/8" |
| Overall Length (mm) | 104.78mm |
| Series | E2030 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Coating | TiN |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

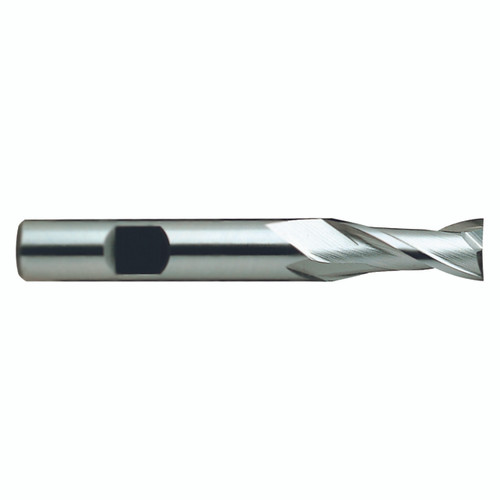

| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
