Product Specifications
| # Manufacturer Number | 160104 |
| Diameter (Decimal Inch) | 0.0669" |
| Diameter (mm) | 17.00mm |
| Shank Size (Decimal Inch) | 0.2500" |
| Shank Size (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 1.0630" |
| Overall Length (mm) | 27.00mm |
| Clamping Length (Decimal Inch) | 1.0630" |
| Clamping Length (mm) | 27.00mm |
| Square Size (Decimal Inch) | 0.2420" |
| Square Size (mm) | 10.41mm |
| Drill Size (Decimal Inch) | 0.3920" |
| Drill Size (mm) | 9.96mm |
| Useable Length (Decimal Inch) | 1.8500" |
| Useable Length (mm) | 46.99mm |
| Connection (Decimal Inch) | 0.3230 x 0.2420" |
| Connection (mm) | 8.20 x 6.15mm |
| Length / Diameter | 2.5xD |
| Helix Angle (Degree) | 15 Degree |
| Pitch | 20 |
| Size | 7/16 |
| Number of Flute | 3 |
| Thread Series | UNF |
| Pitch Limit | H5 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |
| Coating | TiCN |
| Material | P-HSS |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

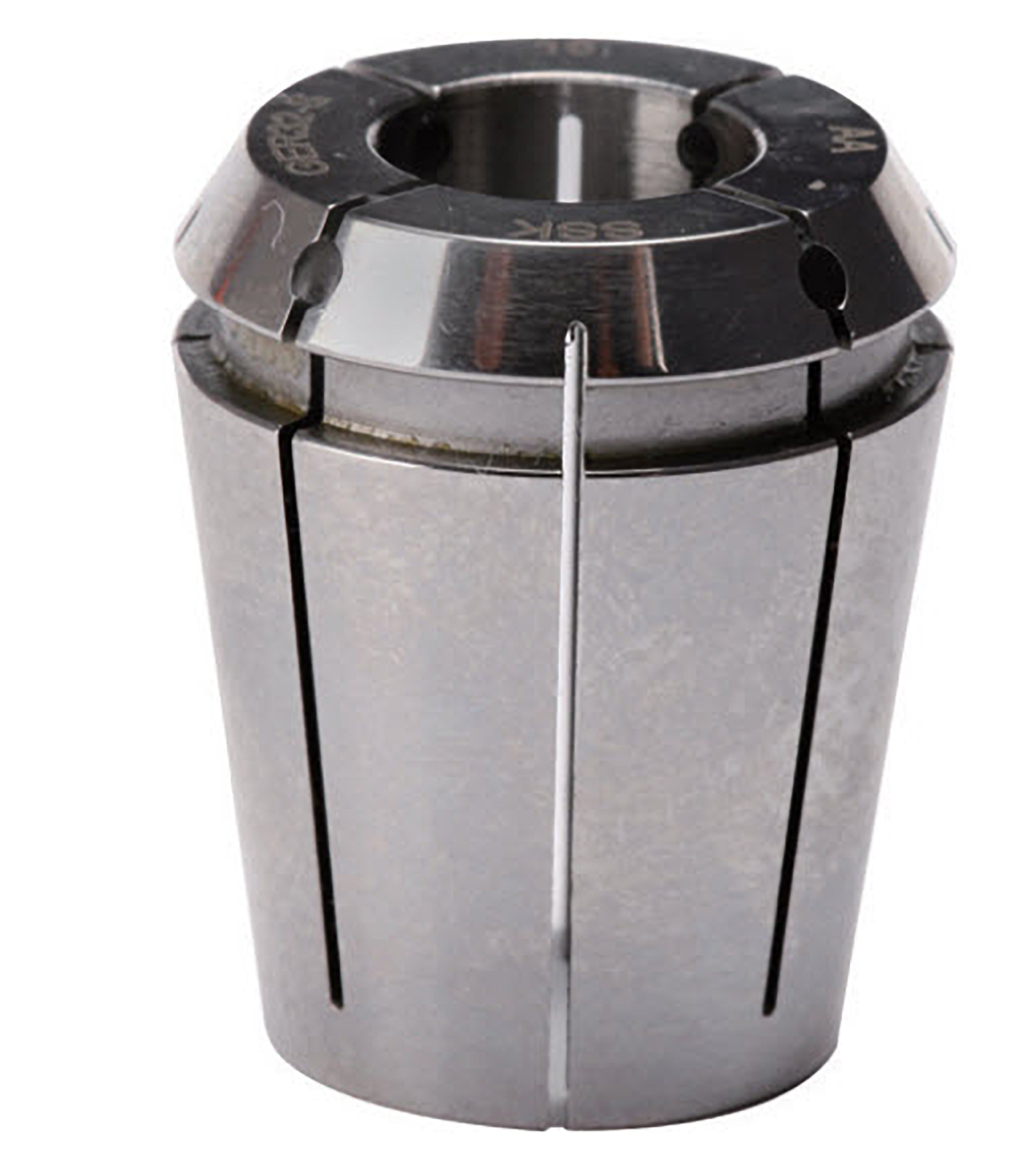

Brand:
YG1
Type:
Precision Spring Collet
Collet Series:
ER16
Overall Length (Inch):
1"
Overall Length (mm):
27.00mm
Overall Length (Decimal Inch):
1.0630"
interval quantity:
