Product Specifications
| EDP Number | 68457 |
| Diameter (Decimal Inch) | 1.5000" |
| Diameter (Inch) | 1-1/2" |
| Diameter (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 2.0000" |
| Length of Cut (Inch) | 2" |
| Length of Cut (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 4.5000" |
| Overall Length (Inch) | 4-1/2" |
| Overall Length (mm) | 114.30mm |
| Ball Nose Radius (Decimal Inch) | 0.7500" |
| Ball Nose Radius (mm) | 19.05mm |
| Series | E2193 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 6 |
| Ball Nose Radius (Inch) | 3/4" |
| Coating | Bright |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

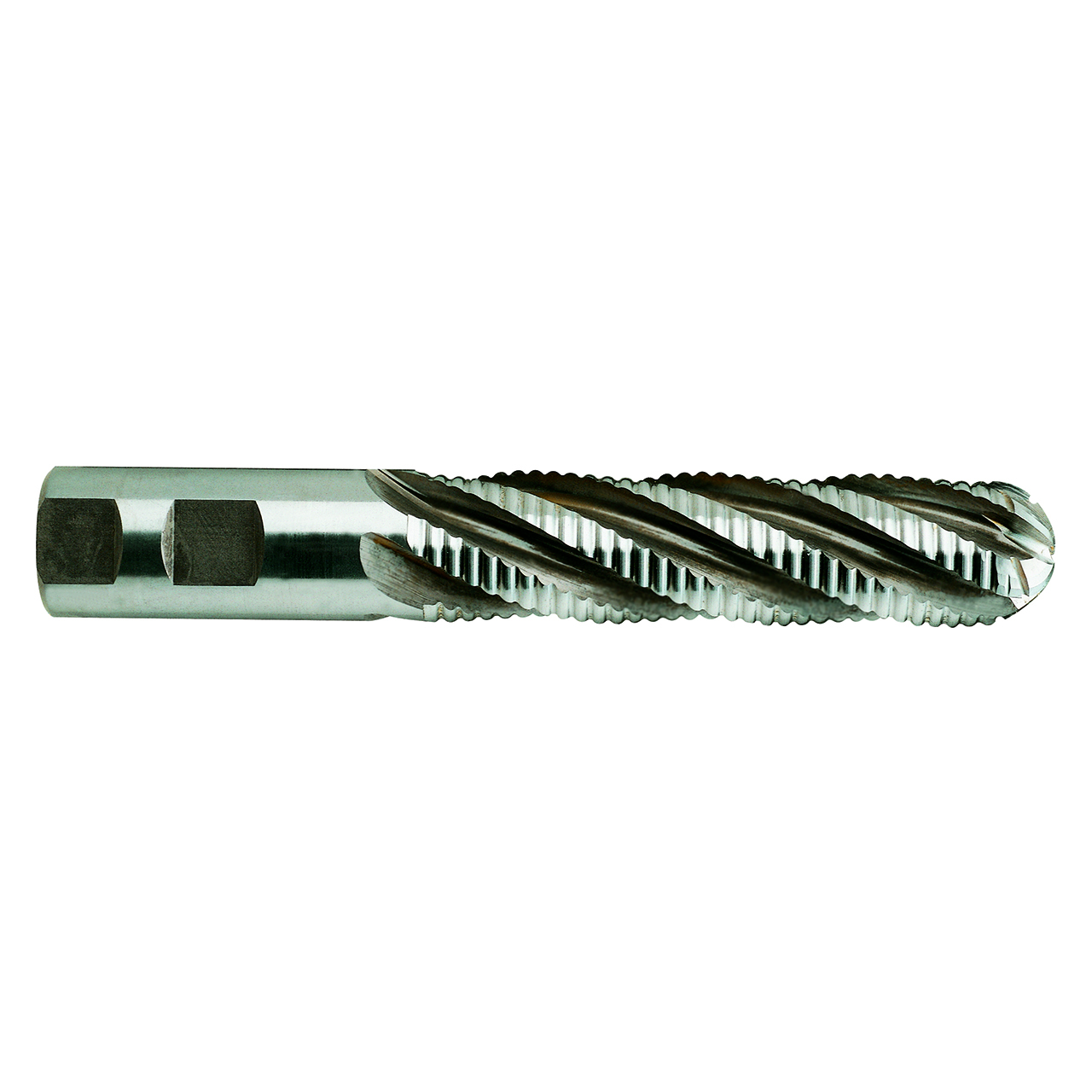

| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1-1/2"
Mill Diameter (Decimal Inch):
1.5000"
Mill Diameter (mm):
38.10mm
Number of Flutes:
6
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.80mm
Material:
HSSCo8
Shank Type:
Flat
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.30mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Finish/Coating:
Bright
Cutting Direction:
HSSCo8 6 Flute Regular Length Corase Pitch Roughing Ball Nose
Helix Angle (Degree):
30 Degree
