| Manufacturer Part Number | 68461CC |
| Diameter (Decimal Inch) | 1.5000" |
| Diameter (Inch) | 1-1/2" |
| Diameter (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.2500" |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Diameter (mm) | 31.75mm |
| Length of Cut (Decimal Inch) | 2.0000" |
| Length of Cut (Inch) | 2" |
| Length of Cut (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 4.5000" |
| Overall Length (Inch) | 4-1/2" |
| Overall Length (mm) | 114.30mm |
| Ball Nose Radius (Decimal Inch) | 0.7500" |
| Ball Nose Radius (mm) | 19.05mm |
| Series | E2193 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 6 |
| Ball Nose Radius (Inch) | 3/4" |
| Coating | TiCN |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

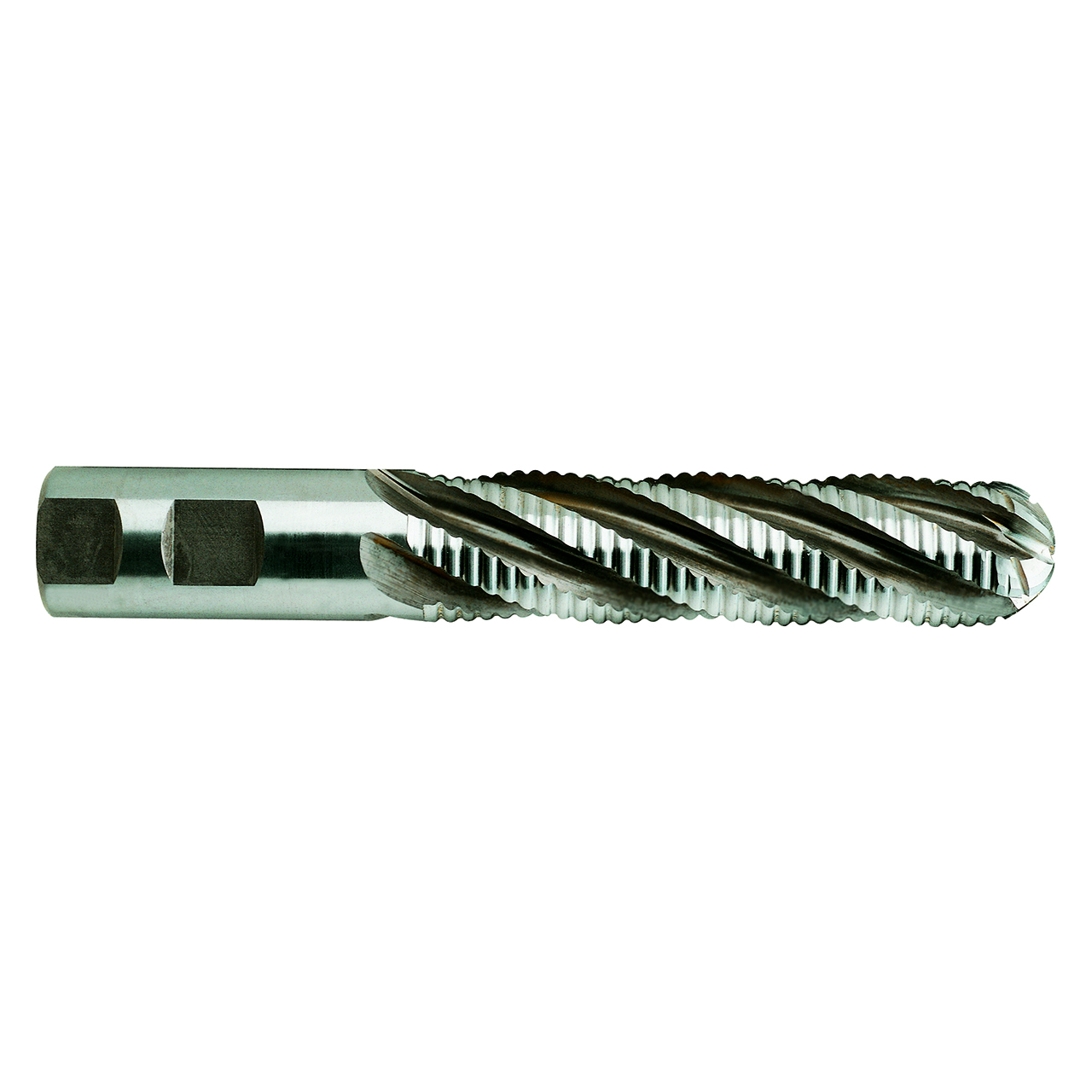

| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
