Product Specifications
| Manufacturer Part Number | AL106BX |
| Bore Diameter (Inch) | 1/2" |
| Bore Diameter (Decimal Inch) | 0.500" |
| Bore Diameter (mm) | 12.70mm |
| Body Diamter Work Piece (Inch) | 1-1/4" |
| Body Diamter Work Piece (Decimal Inch) | 1.250" |
| Body Diamter Work Piece (mm) | 31.75mm |
| Gage Length (Inch) | 4-17/27" |
| Gage Length (Decimal Inch) | 4.630" |
| Gage Length (mm) | 117.60mm |
| Number of Set Screw | 1 |
| Taper Accuracy | AT3 |
| Taper Number | CAT50 |

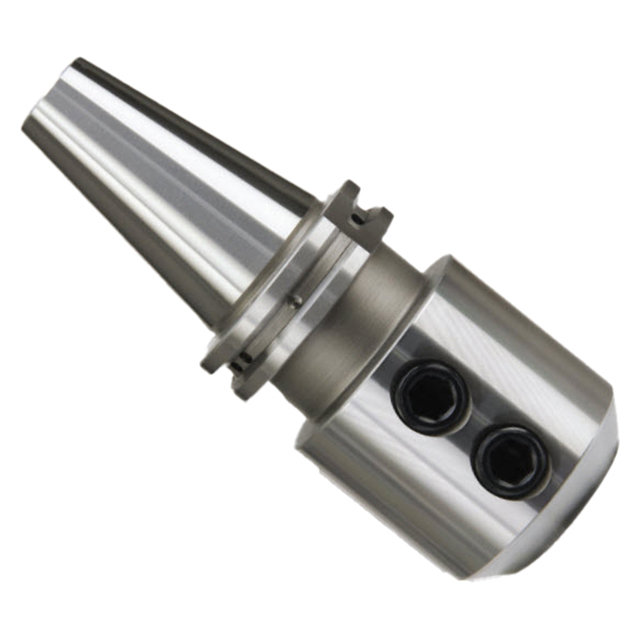

| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Bore Diameter (Inch):
1/2"
Bore Diameter (Decimal Inch):
0.5000"
Bore Diameter (mm):
12.70mm
Body Diameter Work Piece (Inch):
1-1/4"
Body Diameter Work Piece (Decimal Inch):
1.2500"
Body Diameter Work Piece (mm):
31.75mm
Gage Length (Inch):
4-17/27"
Gage Length (Decimal Inch):
4.6300"
Gage Length (mm):
117.60mm
Number of Set Screw:
1
Taper Accuracy:
AT3
RPM:
15000 RPM
Taper Number:
CAT50
interval quantity:
1
